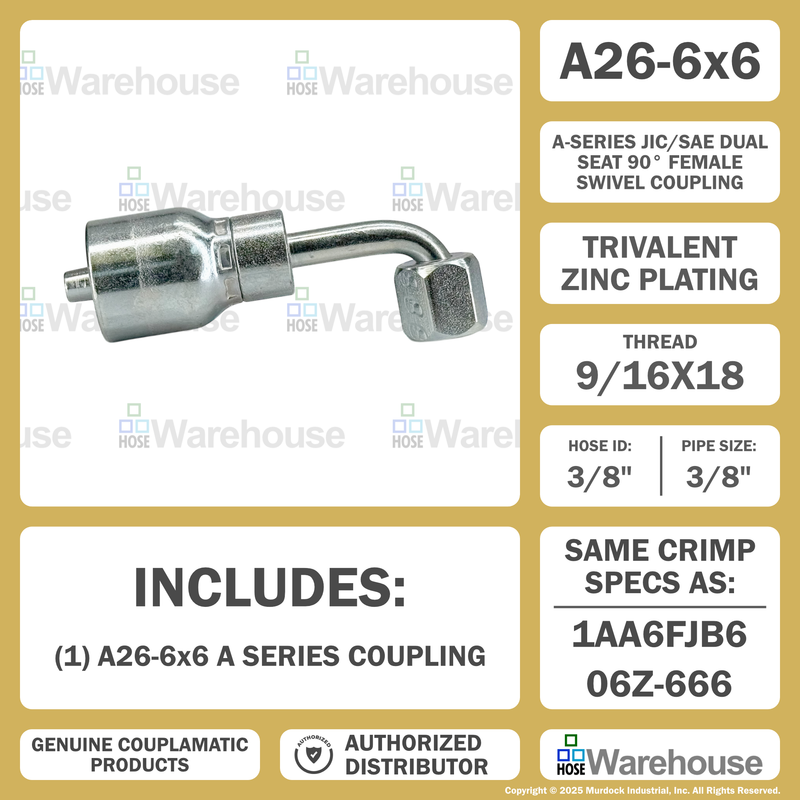

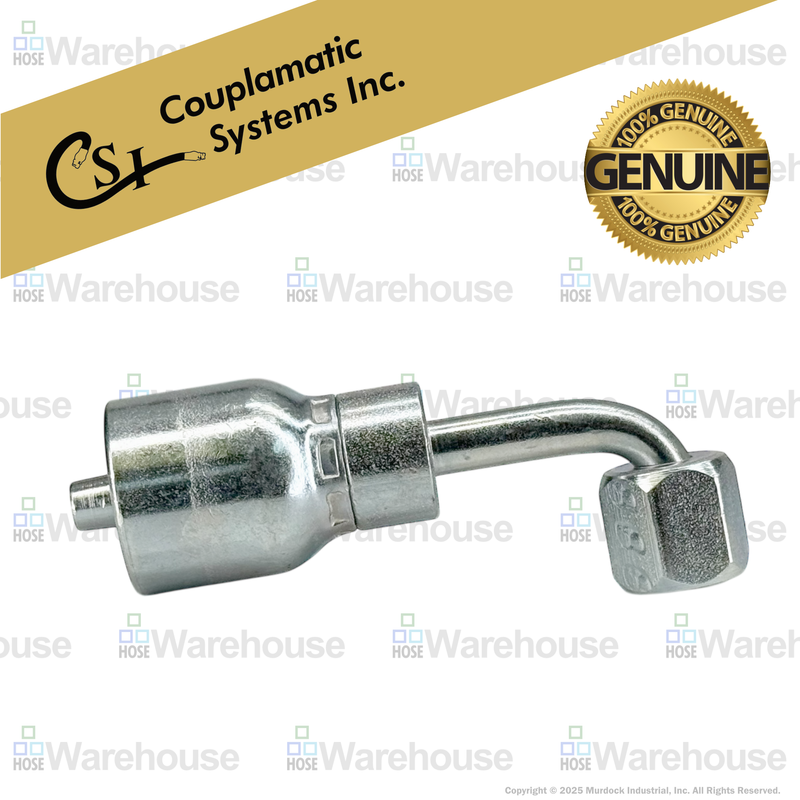

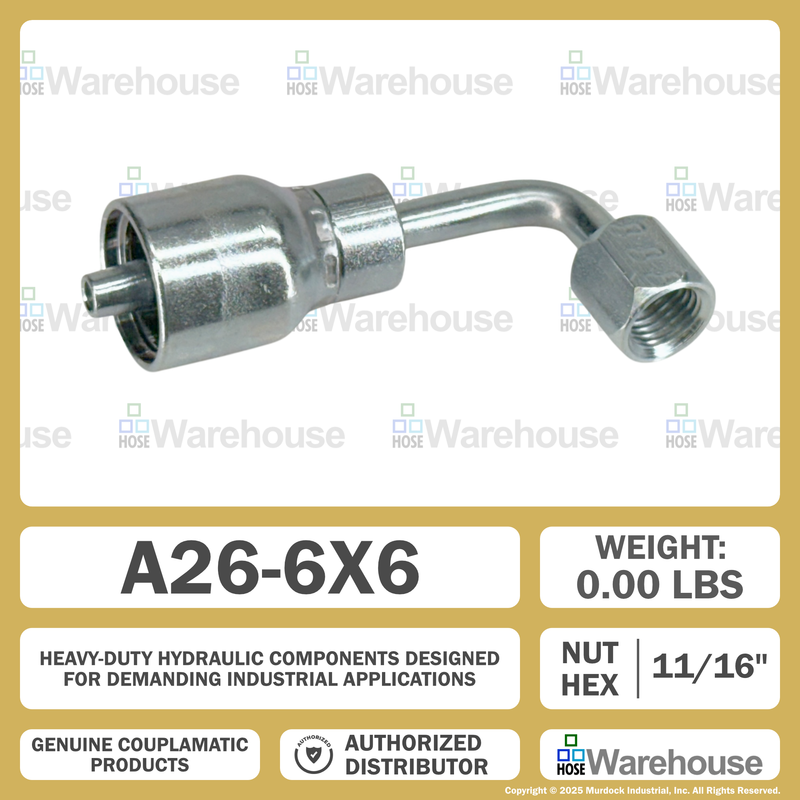

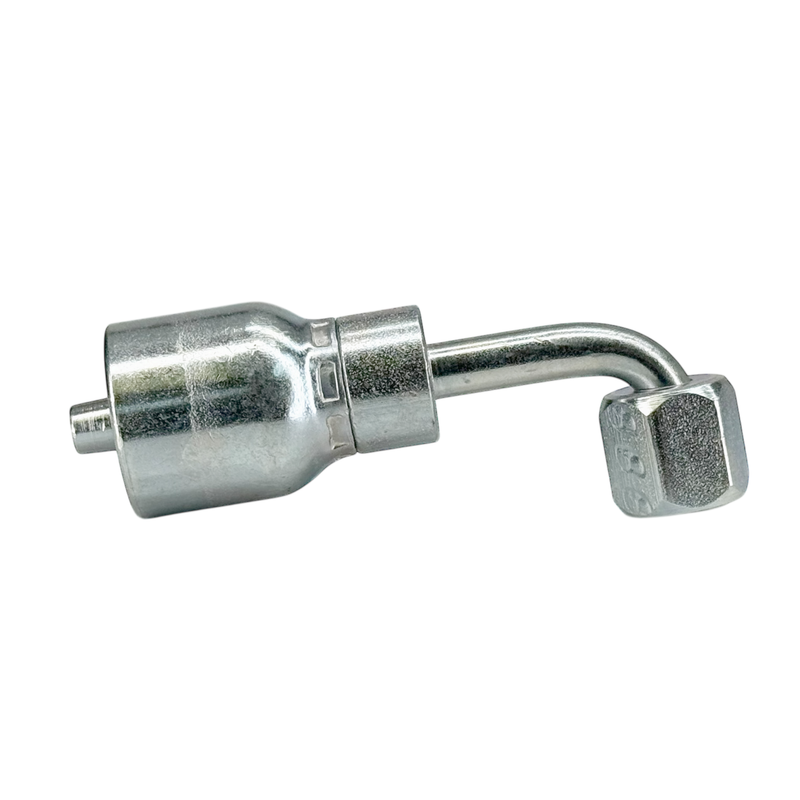

A26-6x6 Couplamatic A Series Coupling - JIC Seat - 90° Female Swivel - 3/8" Hose ID - 9/16x18 Thread

A26-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 90° Elbow

Name: A26-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread JIC Seat Female Swivel | 90° Elbow
Brand: Couplamatic
SKU: A26-6x6 Couplamatic
Price: 9.03 USD
Availability: InStock

Save $1.13

$10.16

$10.16 - $10.16

$10.16

$9.03

$9.03 - $9.03

$9.03

Couplamatic Systems Inc.
A Series - JIC/SAE Dual Seat - 90° Female Swivel

Quantity

Specifications for Variant SKU: A26-6x6 Couplamatic
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| 2SK Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| JH Series \| JH2 Series

Description:
A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

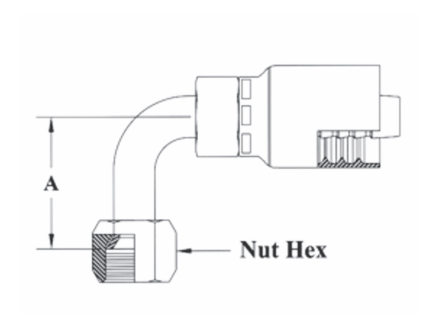

Part Number	Hose ID	Thread Size	Tube OD	A - Drop Inches	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A - Drop Inches	Nut Hex	Aeroquip TTC	Weatherhead Z
A26-4x4	1/4"	7/16x20	1/4"	0.81"	9/16"	1AA4FJB4a	04Z-664
A26-4x5	1/4"	1/2x20	5/16"	0.83"	5/8"	1AA5FJB4	04Z-665
A26-4x6*	1/4"	9/16x18	3/8"	0.91"	11/16"	1AA6FJB4	04Z-666
A26-6x4	3/8"	7/16x20	1/4"	0.81"	9/16"	-	06Z-664
A26-6x6*	3/8"	9/16x18	3/8"	0.91"	11/16"	1AA6FJB6	06Z-666
A26-6x8	3/8"	3/4x16	1/2"	1.15"	7/8"	1AA8FJB6a	06Z-668
A26-8x8	1/2"	3/4x16	1/2"	1.15"	7/8"	1AA8FJB8a	08Z-668
A26-8x10	1/2"	7/8x14	5/8"	1.23"	1"	1AA10FJB8a	08Z-670
A26-10x10	5/8"	7/8x14	5/8"	1.23"	1"	1AA10FJB10a	10Z-670
A26-10x12*	5/8"	1-1/16x12	3/4"	1.88"	1-1/4"	1AA12FJB10	10Z-672
A26-12x12*	3/4"	1-1/16x12	3/4"	1.88"	1-1/4"	1AA12FJB12	12Z-672
A26-12x16*	3/4"	1-5/16x12	1"	2.20"	1-1/2"	-	-
A26-16x16*	1"	1-5/16x12	1"	2.20"	1-1/2"	1AA16FJB16	16Z-676
A26-20x20	1-1/4"	1-5/8x12	1-1/4"	3.31"	2"	1AV20FJB20	20Z-677

*JIC Seat and thread only

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
