A2F1-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | 1/8" Female NPTF x 1/4" Body Size | Compact Plug | Brass

Save $5.05

$12.62

$12.62 - $12.62

$12.62

$7.57

$7.57 - $7.57

$7.57

Dixon Valve & Coupling

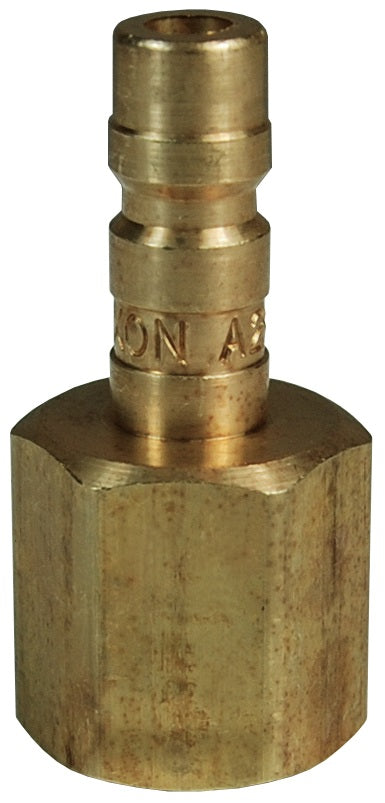

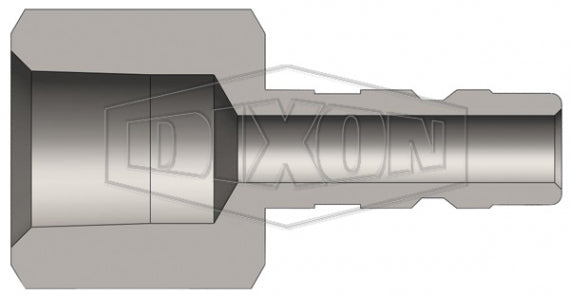

Pneumatic Coupling: A-Series Compact Plug (Female Threads)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.

Specifications for Variant SKU: A2F1-B Dixon
Series:	A-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male A-Series QD Interchange, 1/8in Female NPTF
Material(s):	Brass

Compatibility & Interchange:	Proprietary Astronautics
Construction:	Machined components are manufactured using solid bar stock.
Safety Notes:	Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

A-Series \| Compact Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Flow at 100 PSI	Working Pressure and Burst Pressure when Connected to:
A1F1-B	Plug/Male	1/8"	1/8" - 27 Female NPTF	Brass	1.26" (32.0mm)	0.58" (14.7mm)	1/2"	7 CFM	Brass Coupler & Brass Plug: Max. Working: 500 PSI (35 bar) Burst: 15,500 PSI (1,070 bar)
A2F1-B	Plug/Male	1/4"	1/8" - 27 Female NPTF	Brass	1.34" (34.0mm)	0.65" (16.5mm)	9/16"	-	Brass Coupler & Brass Plug: Max. Working: 500 PSI (35 bar) Burst: 6,500 PSI (450 bar)
A2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	-	Brass Coupler & Steel Plug: Max. Working: 1,000 PSI (70 bar) Burst: 8,000 PSI (550 bar)
A2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.56" (39.6mm)	0.79" (20.1mm)	11/16"	25 CFM	Brass Coupler & Brass Plug: Max. Working: 500 PSI (35 bar) Burst: 6,500 PSI (450 bar)

A-Series \| Compact Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Flow at 100 PSI	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Flow at 100 PSI	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
1AF1-B	Socket/Female	1/8"	1/8" - 27 Female NPTF	Brass	1.68" (42.7mm)	0.64" (16.3mm)	1/2"	7 CFM	500 PSI (35 bar)	1,000 PSI (70 bar)	15,500 PSI (1,070 bar)	18,500 PSI (1,275 bar)
2AF1-B	Socket/Female	1/4"	1/8" - 27 Female NPTF	Brass	2.41" (61.2mm)	0.77" (19.6mm)	1/2"	-	500 PSI (35 bar)	1,000 PSI (70 bar)	6,500 PSI (450 bar)	8,000 PSI (550 bar)
2AF2-B	Socket/Female	1/4"	1/4" - 18 Female NPTF	Brass	2.70" (68.6mm)	0.77" (19.6mm)	11/16"	25 CFM	500 PSI (35 bar)	1,000 PSI (70 bar)	6,500 PSI (450 bar)	8,000 PSI (550 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
