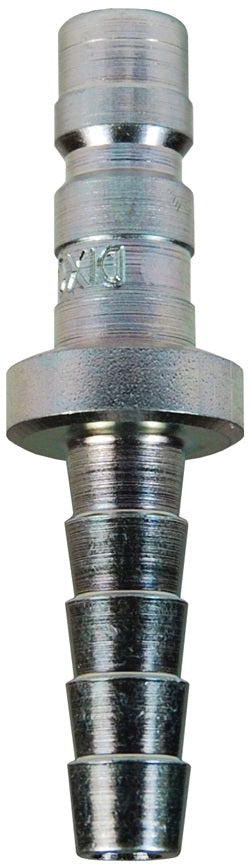

A2S2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | A-Series | Hose Barb | 1/4" Hose ID x 1/4" Body Size | Compact Plug | Steel

Save $5.57

$13.92

$13.92 - $13.92

$13.92

$8.35

$8.35 - $8.35

$8.35

Dixon Valve & Coupling
Pneumatic Coupling: A-Series Compact Plug (Hose Barb)

A-Series couplers are intended for use in compressed air service where the convenience of one hand operation and a compact profile is desired.

Specifications for Variant SKU: A2S2 Dixon
Series:	A-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male A-Series QD Interchange, 1/4in Hose Barb
Material(s):	Steel

Compatibility & Interchange:	Proprietary Astronautics
Construction:	Machined components are manufactured using solid bar stock. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. Pressure rating given at ambient temperature 70°F (21°C).
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

A-Series \| Compact Plug (Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Maximum OD	Hex	Flow at 100 PSI	Working Pressure and Burst Pressure when Connected to:
A1S1-B	Plug/Male	1/8"	1/8"	Brass	1.50" (38.1mm)	0.44" (11.2mm)	-	7 CFM	Brass Coupler & Brass Plug: Max. Working: 500 PSI (35 bar) Burst: 15,500 PSI (1,070 bar)
A2S2	Plug/Male	1/4"	1/4"	Steel	1.99" (50.5mm)	1.01" (25.7mm)	-	-	Brass Coupler & Steel Plug: Max. Working: 1,000 PSI (70 bar) Burst: 8,000 PSI (550 bar)

A-Series \| Compact Coupler (Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Max. OD	Hex	Flow at 100 PSI	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Max. OD	Hex	Flow at 100 PSI	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
1AS1-B	Socket/Female	1/8"	1/8"	Brass	1.98" (50.3mm)	0.64" (16.3mm)	1/2"	7 CFM	500 PSI (35 bar)	1,000 PSI (70 bar)	15,500 PSI (1,070 bar)	18,500 PSI (1,275 bar)
2AS2-B	Socket/Female	1/4"	1/4"	Brass	2.70" (68.6mm)	0.77" (19.6mm)	11/16"	25 CFM	500 PSI (35 bar)	1,000 PSI (70 bar)	6,500 PSI (450 bar)	8,000 PSI (550 bar)
