A31-6x8 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - 45° Female Swivel - 3/8" Hose ID -13/16x16 Thread

A31-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel | 45° Elbow

Save $1.57 Save $1.57
$14.13
$14.13 - $14.13
$14.13
$12.56
$12.56 - $12.56
$12.56

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 45° Female Swivel
Specifications for Variant SKU: A31-6x8 Couplamatic
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

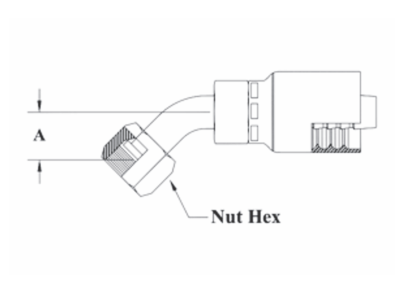

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A31-4x4 1/4" 9/16x18 1/4" 0.41" 11/16" 1AA4FRA4 04Z-L64
A31-4x6 1/4" 11/16x16 3/8" 0.48" 13/16" 1AA6FRA4 04Z-L66
A31-6x6 3/8" 11/16x16 3/8" 0.43" 13/16" 1AA6FRA6 06Z-L66
A31-6x8 3/8" 13/16x16 1/2" 0.60" 15/16" 1AA8FRA6 06Z-L68
A31-8x6 1/2" 11/16x16 3/8" 0.43" 13/16" - 08Z-L66
A31-8x8 1/2" 13/16x16 1/2" 0.59" 15/16" 1AA8FRA8 08Z-L68
A31-8x10 1/2" 1x14 5/8" 0.68" 1-1/8" 1AA10FRA8 08Z-L70
A31-10x10 5/8" 1x14 5/8" 0.68" 1-1/8" 1AA10FRA10 10Z-L70
A31-10x12 5/8" 1-3/16x12 3/4" 0.83" 1-3/8" - 10Z-L72
A31-12x12 3/4" 1-3/16x12 3/4" 0.83" 1-3/8" 1AA12FRA12 12Z-L72
A31-16x16 1" 1-7/16x12 1" 1.15" 1-5/8" 1AA16FRA16 16Z-L76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
