A32-6x4 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 3/8" Hose ID - 9/16x18 Thread

A32-6x4 by Couplamatic | A Series Coupling | 3/8" Hose ID x 9/16x18 Thread O-Ring Face Seal | ORF Female Swivel | 90° Elbow

Save $8.23 Save $8.23
$20.58
$20.58 - $20.58
$20.58
$12.35
$12.35 - $12.35
$12.35

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: A32-6x4 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

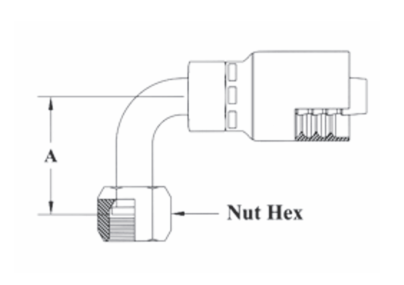

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A32-4x4 1/4" 9/16x18 1/4" 0.78" 11/16" 1AA4FRB4 04Z-A24
A32-4x6 1/4" 11/16x16 3/8" 0.90" 13/16" 1AA6FRB4 04Z-A26
A32-6x4 3/8" 9/16x18 1/4" 0.78" 11/16" 1AA4FRB6 -
A32-6x6 3/8" 11/16x16 3/8" 0.90" 13/16" 1AA6FRB6 06Z-A26
/A32-6x8 3/8" 13/16x16 1/2" 1.15" 15/16" 1AA8FRB6 06Z-A28
A32-8x6 1/2" 11/16x16 3/8" 0.92" 13/16" 1AA6FRB8 08Z-A26
A32-8x8 1/2" 13/16x16 1/2" 1.15" 15/16" 1AA8FRB8 08Z-A28
A32-8x10 1/2" 1x14 5/8" 1.27" 1-1/8" 1AA10FRB8 08Z-A30
A32-10x10 5/8" 1x14 5/8" 1.27" 1-1/8" 1AA10FRB10 10Z-A30
A32-10x12 5/8" 1-3/16x12 3/4" 1.88" 1-3/8" 1AA12FRB10 10Z-A32
A32-12x12 3/4" 1-3/16x12 3/4" 1.88" 1-3/8" 1AA12FRB12 12Z-A32
A32-12x16 3/4" 1-7/16x12 1" 2.20" 1-5/8" - 12Z-A36
A32-16x16 1" 1-7/16x12 1" 2.20" 1-5/8" 1AA16FRB16 16Z-A36
A32-20x20 1-1/4" 1-11/16x12 1-1/4" 2.51" 1-7/8" 1AV20FRB20 20Z-A40

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
