A33-6x6 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop - 3/8" Hose ID - 11/16x16 Thread

A33-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x 11/16x16 Thread O-Ring Face Seal | ORF Female Swivel Long Drop | 90° Elbow

Save $8.37 Save $8.37
$20.93
$20.93 - $20.93
$20.93
$12.56
$12.56 - $12.56
$12.56

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 90° Female Swivel Long Drop
Specifications for Variant SKU: A33-6x6 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

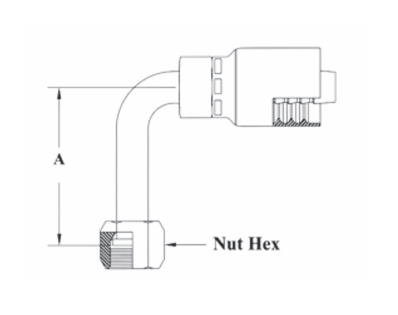

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A33-4x4 1/4" 9/16x18 1/4" 1.80" 11/16" 1AA4FRC4 04Z-A64
A33-6x6 3/8" 11/16x16 3/8" 2.13" 13/16" 1AA6FRC6 06Z-A66
A33-8x8 1/2" 13/16x16 1/2" 2.51" 15/16" 1AA8FRC8 08Z-A68
A33-10x10 5/8" 1x14 5/8" 2.76" 1-1/8" - 10Z-A70
A33-12x12 3/4" 1-3/16x12 3/4" 3.78" 1-3/8" 1AA12FRC12 12Z-A72
A33-16x16 1" 1-7/16x12 1" 4.50" 1-5/8" 1AA16FRC16 16Z-A76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
