A37-6x10 Couplamatic A Series Coupling - DIN Light Universal Seat - Female Swivel - 3/8" Hose ID - M16x1.5 Thread

A37-6x10 by Couplamatic | A Series Coupling | 3/8" Hose ID x M16x1.5 Thread DIN Light Universal Seat Female Swivel | Straight

Save $6.84 Save $6.84
$17.10
$17.10 - $17.10
$17.10
$10.26
$10.26 - $10.26
$10.26

Couplamatic Systems Inc.
A Series - DIN Light Universal Seat - Female Swivel
Specifications for Variant SKU: A37-6x10 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: L10 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

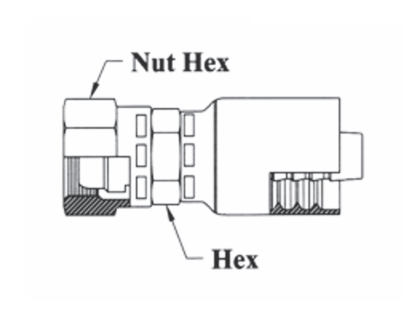

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A37-4x8 1/4" 8mm M14x1.5 5/8" 11/16" 1A6DL4 04Z-08C
A37-4x10 1/4" 10mm M16x1.5 5/8" 3/4" 1A8DL4 04Z-10C
A37-6x10 3/8" 10mm M16x1.5 11/16" 3/4" 1A8DL6 06Z-10C
A37-6x12 3/8" 12mm M18x1.5 11/16" 7/8" 1A10DL6 06Z-12C
A37-8x15 1/2" 15mm M22x1.5 7/8" 1-1/16" 1A12DL8 08Z-15C

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
