A40-6x6 Couplamatic A Series Coupling - JIS 30° Flare Parallel Pipe - Female Swivel - 3/8" Hose ID - G-3/8-19 Thread

A40-6x6 by Couplamatic | A Series Coupling | 3/8" Hose ID x G-3/8-19 Thread JIS 30° Flare Parallel Pipe Female Swivel | Straight

Save $5.26 Save $5.26
$13.15
$13.15 - $13.15
$13.15
$7.89
$7.89 - $7.89
$7.89

Couplamatic Systems Inc.
A Series - JIS 30° Flare Parallel Pipe - Female Swivel
Specifications for Variant SKU: A40-6x6 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIS, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
A Series — Bite to the Wire

A40 A Series — JIS 30° Flare Parallel Pipe, Female Swivel, Straight

A40 is the JIS 30° Flare Parallel Pipe, Female Swivel, Straight configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?

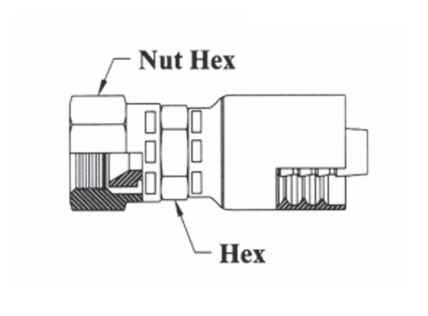

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A40-4x4 1/4" 1/4" G-1/4-19 5/8" 3/4" 1A4JF4 04Z-04L
A40-6x6 3/8" 3/8" G-3/8-19 11/16" 7/8" 1A6JF6 06Z-06L
A40-8x8 1/2" 1/2" G-1/2-14 7/8" 1-1/16" 1A8JF8 08Z-08L
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
