A47-16x16 Couplamatic A Series Coupling - Code 61 Split Flange - Straight - 1" Hose ID

A47-16x16 by Couplamatic | A Series Coupling | 1" Hose ID Split Flange | Code 61 | Straight

Save $18.53 Save $18.53
$46.33
$46.33 - $46.33
$46.33
$27.80
$27.80 - $27.80
$27.80

Couplamatic Systems Inc.
A Series - Code 61 Split Flange - Straight
Specifications for Variant SKU: A47-16x16 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1in Code 61 Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

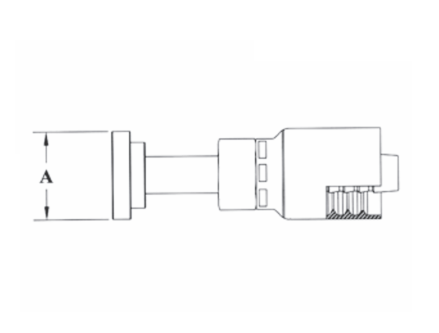

Part Number Hose I.D. Flange Size A-Dia Inches Cross Reference Part Numbers
Weatherhead Z
A47-12x12 3/4" 3/4" 1.50" 12Z-G12
A47-16x16 1" 1" 1.75" 16Z-G16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
