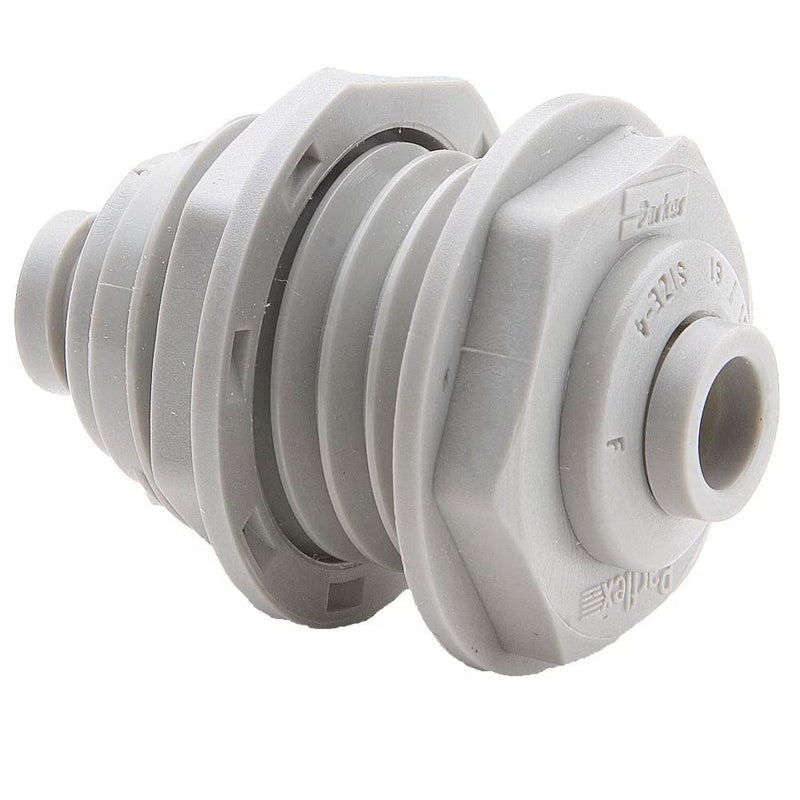

A4BU4-MG by Parker | TrueSeal™ Bulkhead Union | 1/4" Push-to-Connect | 1.50" Length | Straight | Gray | Acetal

A4BU4-MG by Parker | TrueSeal™ Bulkhead Union | 1/4" Push-to-Connect | 1.50" Length | Straight | Gray | Acetal

Save $0.23 Save $0.23
$3.10
$3.10 - $3.10
$3.10
$2.87
$2.87 - $2.87
$2.87

by Parker Hannifin
TrueSeal™ Fittings:BU - Bulkhead Union
Specifications for Variant SKU: A4BU4-MG Parker
Brand: TrueSeal™
Series: BU Series
Shape (Orientation): Straight
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. Hex (C1) Hex (C2) Overall Length (L) P Max Wall Thickness Flow Diameter (D) Bulkhead Hole Drill Size
    A4BU4-MG PPB4BU4-MG PP4BU4 FB4BU4-HBLK 1/4" 15/16" 15/16" 1.50" .50" .175" 7/8"
    A5BU5-MG - - FB5BU5-HBLK 5/16" 1-1/16" 1-1/16" 1.75" .62" .188" 1"
    A6BU4-MG PPB6BU4-MG PP6BU4 - 3/8"-1/4" 1-1/16" 1-1/16" 1.75" .62" .175" 1"
    A6BU6-MG PPB6BU6-MG PP6BU6 FB6BU6-HBLK 1/4" 1-1/16" 1-1/16" 1.75" .62" .250" 1"
    A8BU8-MG - - FB8BU8-HBLK 3/8" 15/16" 15/16" 2.04" .70" .375" 1-1/8"
