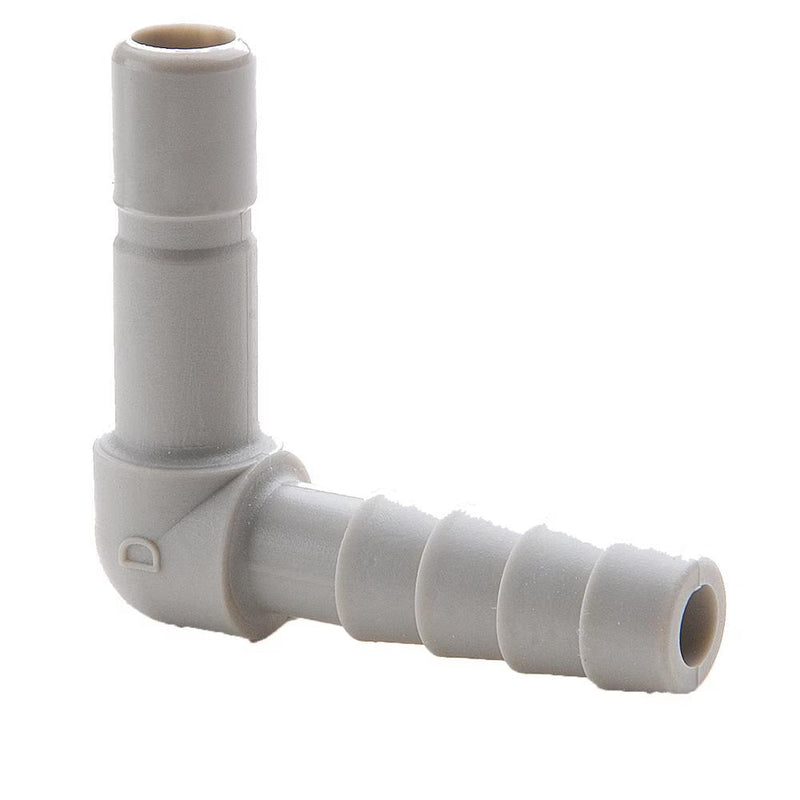

A4TEB4 by Parker | TrueSeal™ Accessories | 1/4" Tube Size x 1/4" Barb | 90° Elbow | Gray | Acetal

A4TEB4 by Parker | TrueSeal™ Accessories | 1/4" Tube Size x 1/4" Barb | 90° Elbow | Gray | Acetal

Save $0.81 Save $0.81
$2.02
$2.02 - $2.02
$2.02
$1.21
$1.21 - $1.21
$1.21

by Parker Hannifin
TrueSeal™ Fittings:TEB - Tube Elbow Barb Connector
Specifications for Variant SKU: A4TEB4 Parker
Brand: TrueSeal™
Series: TEB Series
Shape (Orientation): 90° Elbow
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features
  • Acetal and Black Polypropylene with EPDM seals and metal gripping collet standard
  • White Polypropylene with EPDM seals and plastic gripping collet standard
  • Black Kynar with Fluorocarbon (FKM) seals and black Kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray Acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets & Applications
  • Food
  • Potable Water
  • Chemical
  • Filtration
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range
  • Acetal and Kynar: 1/4", 5/16", 3/8" vacuum to 300 PSI (20.7 bar); 1/2" vacuum to 250 PSI (17.2 bar)
  • Polypropylene: 1/4", 3/8", 1/2" vacuum to 150 PSI (10.3 bar)
Temperature Range
  • Acetal: -20° to +180° F (-28.9° to +82.2° C)
  • Polypropylene: 0° to +225° F (-17.8° to +107.2° C)
  • Kynar: 0° to +275° F (-17.8° to +135° C)
Compatible Tubing
  • Polyethylene
  • Polypropylene**
  • Nylon**
  • Vinyl+
  • Fluoropolymer**
  • Polyurethane+
  • *Kynar®
Notes

* Registered trademark of The Arkema Group.
** Metal gripper required (-MG & -HBLK suffix).
+ Tube Support required.

Gray Acetal White PPL Black Kynar Tube Stem O.D. Tube I.D. M N Overall Length (L)
A4TEB4 PP4TEB4 FB4TEB4 1/4" 1/4" .89" 1.00" .140"
A6TEB4 - FB6TEB4 3/8" 1/4" 1.335" 1.055" .375"
A6TEB6 PP6TEB6 FB6TEB6 3/8" 3/8" 1.34" 1.21" .250"
A8TEB8 - - 1/2" 1/2" 1.30" 1.30" .390"
