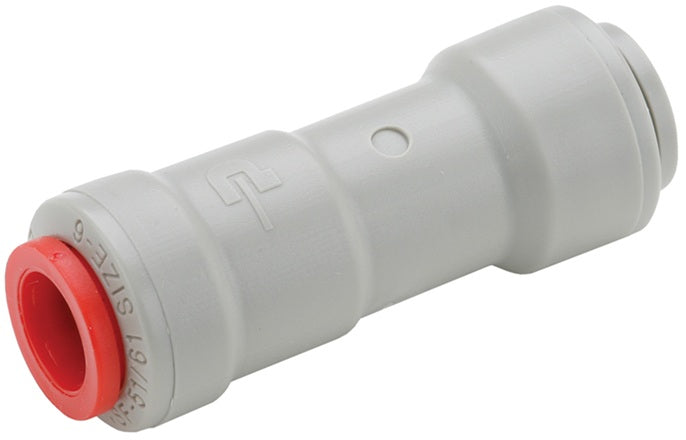

A4VC4-MG by Dixon Valve | TrueSeal™ Check Valve | 1/4" Tube OD | Acetal

A4VC4-MG by Dixon Valve | TrueSeal™ Check Valve | 1/4" Tube OD | Acetal

Save $9.17 Save $9.17
$22.92
$22.92 - $22.92
$22.92
$13.75
$13.75 - $13.75
$13.75

Dixon Valve
TrueSeal™ Check Valve | Tube End x Tube End

Push-to-connect check valves ensure protection against reversal of flow. The valves have an arrow molded into the body to indicate the direction of flow.

Valves are designed for connection with either thermoplastic or soft metal tubing and are intended for use with liquids only.
Specifications for Variant SKU: A4VC4-MG Dixon
Brand: TrueSeal
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Acetal
Seal Material(s): EPDM
Material:
  • Body material: acetal
  • O-ring: EPDM
  • Metal grip edge: 300 stainless steel
Approvals:
  • NSF-51 listed.
Specifications:
  • Maximum operating pressure: 150 PSI (dependent on tubing used)
  • Temperature range: 34°F to 150°F (1°C to 65°C)
  • Cracking pressure: 1/3 PSI
Part Number Tube O.D.
A4VC4-MG 1/4"
A6VC6-MG 3/8"
