A50-12x12 Couplamatic A Series Coupling - Code 61 Split Flange - 45° Bend - 3/4" Hose ID

A50-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID Split Flange | Code 61 | 45° Elbow

Save $17.84 Save $17.84
$44.60
$44.60 - $44.60
$44.60
$26.76
$26.76 - $26.76
$26.76

Couplamatic Systems Inc.
A Series - Code 61 Split Flange - 45° Bend
Specifications for Variant SKU: A50-12x12 Couplamatic
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Code 61 Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

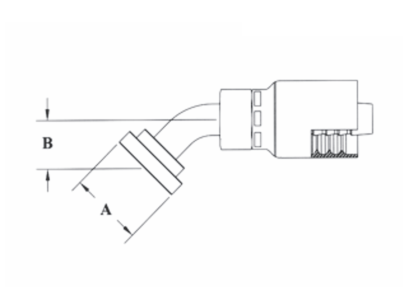

Part Number Hose I.D. Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Weatherhead Z
A50-12x12 3/4" 3/4" 1.50" 1.00" 12Z-G42
A50-16x16 1" 1" 1.75" 1.12" 16Z-G46

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
