A53-16x16 Couplamatic A Series Coupling - Code 61 Split Flange - 90° Bend - 1" Hose ID

A53-16x16 by Couplamatic | A Series Coupling | 1" Hose ID Split Flange | Code 61 | 90° Elbow

Save $22.90 Save $22.90
$57.25
$57.25 - $57.25
$57.25
$34.35
$34.35 - $34.35
$34.35

Couplamatic Systems Inc.
A Series - Code 61 Split Flange - 90° Bend
Specifications for Variant SKU: A53-16x16 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Code 61 Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
A Series — Bite to the Wire

A53 A Series — Code 61 Split Flange, 90° Elbow

A53 is the Code 61 Split Flange, 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?

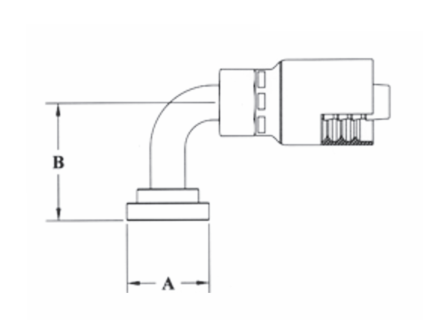

Part Number Hose I.D. Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Weatherhead Z
A53-12x12 3/4" 3/4" 1.50" 2.12" 12Z-G72
A53-16x16 1" 1" 1.75" 2.38" 16Z-G76
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
