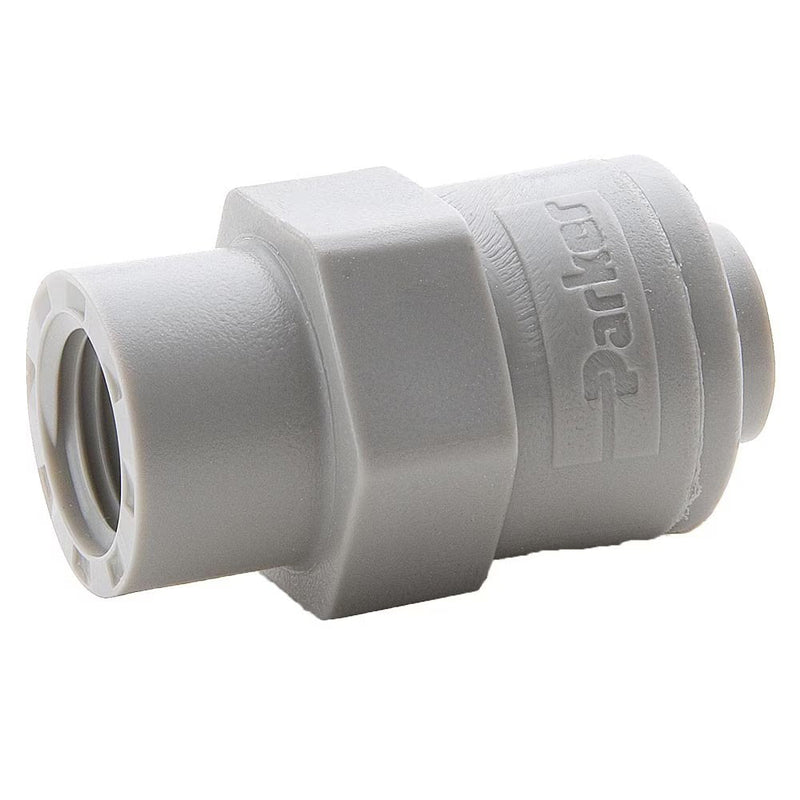

A5FC4-MG by Parker | TrueSeal™ Threaded Fittings | 5/16" Push-to-Connect x 1/4" Female NPTF Thread | 1.41" Length | Straight | Gray | Acetal

A5FC4-MG by Parker | TrueSeal™ Threaded Fittings | 5/16" Push-to-Connect x 1/4" Female NPTF Thread | 1.41" Length | Straight | Gray | Acetal

Save $0.41 Save $0.41
$5.02
$5.02 - $5.02
$5.02
$4.61
$4.61 - $4.61
$4.61

by Parker Hannifin
TrueSeal™ Fittings:FC - Female Connector
Specifications for Variant SKU: A5FC4-MG Parker
Brand: TrueSeal™
Series: FC Series
Shape (Orientation): Straight
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
    A4FC2-MG PPB4FC2-MG PP4FC2 FB4FC2-HBLK 1/4" 1/8" 11/16" 1.20" .175"
    A4FC4-MG PPB4FC4-MG PP4FC4 FB4FC4-HBLK 1/4" 1/4" 23/32" 1.32" .175"
    A5FC4-MG - - FB5FC4-HBLK 5/16" 1/4" 13/16" 1.41" .188"
    A5FC6-MG - - - 5/16" 3/8" 1" 1.50" .188"
    A6FC4-MG PPB6FC4-MG PP6FC4 FB6FC4-HBLK 3/8" 1/4" 13/16" 1.41" .250"
    A6FC6-MG PPB6FC6-MG PP6FC6 FB6FC6-HBLK 3/8" 3/8" 1" 1.50" .250"
    A6FC8-MG - - FB6FC8-HBLK 3/8" 1/2" 1-1/8" 1.52" .250"
    A8FC6-MG - PP8FC6 FB8FC6-HBLK 1/2" 3/8" 1-1/8" 1.60" .375"
    A8FC8-MG - PP8FC8 FB8FC8-HBLK 1/2" 1/2" 1-1/8" 1.75" .375"
