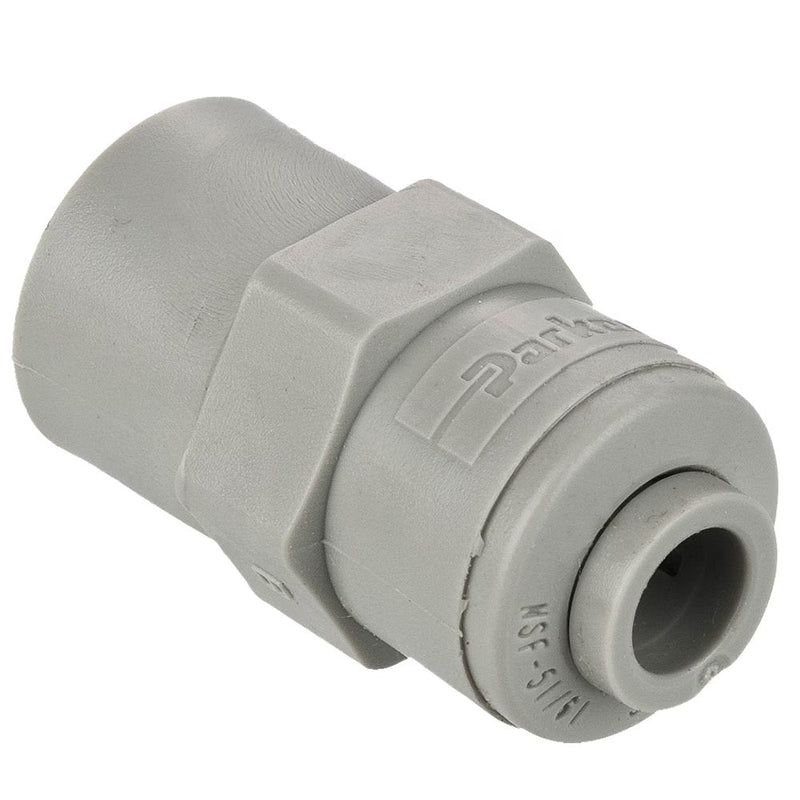

A6FF4-MG by Parker | TrueSeal™ Threaded Fittings | 3/8" Female Connector x 7/16-20" UNS-2B Thread | 1.41" Length | Straight | Gray | Acetal

A6FF4-MG by Parker | TrueSeal™ Threaded Fittings | 3/8" Female Connector x 7/16-20" UNS-2B Thread | 1.41" Length | Straight | Gray | Acetal

Save $0.35 Save $0.35
$4.54
$4.54 - $4.54
$4.54
$4.19
$4.19 - $4.19
$4.19

by Parker Hannifin
TrueSeal™ Fittings:FF - 45° Female Flare
Specifications for Variant SKU: A6FF4-MG Parker
Brand: TrueSeal™
Series: FF Series
Shape (Orientation): Straight
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
    A4FF4-MG PP4FF4 FB4FF4-HBLK 1/4" 7/16-20" 23/32" 1.32" .190"
    A6FF4-MG - FB6FF4-HBLK 3/8" 7/16-20" 13/16" 1.41" .190"
    A6FF6-MG PP6FF6 FB6FF6-HBLK 3/8" 5/8-18" 1" 1.50" .250"
