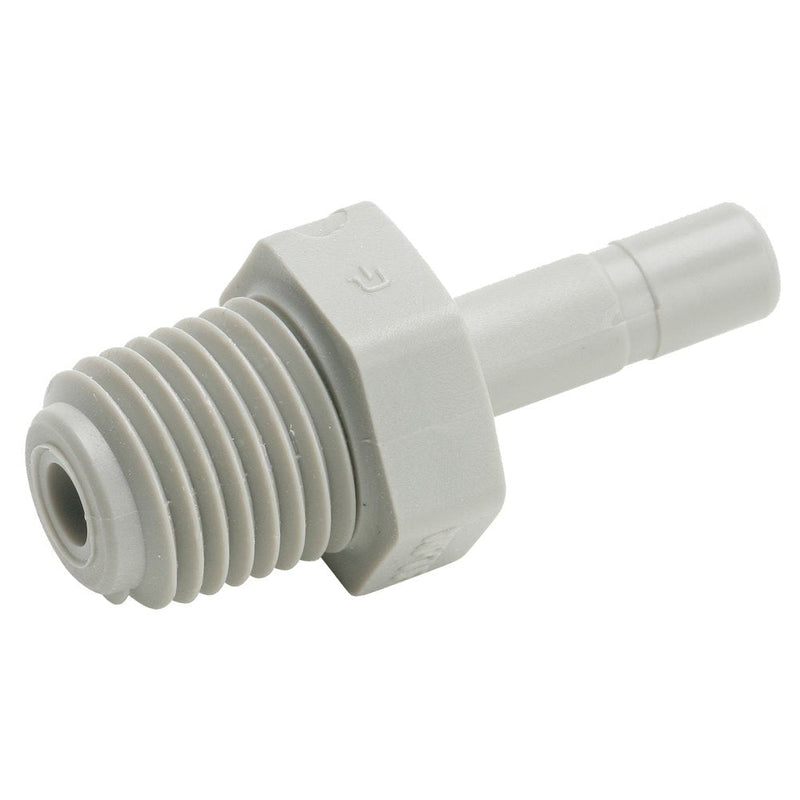

A6TMC6 by Parker | TrueSeal™ Threaded Fittings | 3/8" Tube Stem Adapter x 3/8" Male NPTF Thread | 1.70" Length | Straight | Gray | Acetal

A6TMC6 by Parker | TrueSeal™ Threaded Fittings | 3/8" Tube Stem Adapter x 3/8" Male NPTF Thread | 1.70" Length | Straight | Gray | Acetal

Save $0.54 Save $0.54
$1.35
$1.35 - $1.35
$1.35
$0.81
$0.81 - $0.81
$0.81

by Parker Hannifin
TrueSeal™ Fittings:TMC - Tube Stem Adapter
Specifications for Variant SKU: A6TMC6 Parker
Brand: TrueSeal™
Series: TMC Series
Shape (Orientation): Straight
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. NPTF Thread Size Hex (C) Overall Length (L) Flow Diameter (D)
    A4TMC2 PPB4TMC2 PP4TMC2 FB4TMC2 1/4" 1/8" 9/16" 1.44" .175"
    A4TMC4 PPB4TMC4 PP4TMC4 FB4TMC4 1/4" 1/4" 11/16" 1.56" .175"
    A5TMC2 - - - 5/16" 1/8" 9/16" 1.50" .188"
    A5TMC4 - - FB5TMC4 5/16" 1/4" 11/16" 1.67" .188"
    A5TMC6 - - - 5/16" 3/8" 13/16" 1.67" .188"
    A6TMC4 PPB6TMC4 PP6TMC4 FB6TMC4 3/8" 1/4" 13/16" 1.70" .250"
    A6TMC6 PPB6TMC6 PP6TMC6 FB6TMC6 3/8" 3/8" 13/16" 1.70" .250"
    A6TMC8 - - - 3/8" 1/2" 15/16" 1.90" .250"
    A8TMC4 - - - 1/2" 1/4" 13/16" 1.82" .240"
    A8TMC6 - PP8TMC6 FB8TMC6 1/2" 3/8" 13/16" 1.82" .375"
    A8TMC8 - PP8TMC8 FB8TMC8 1/2" 1/2" 1" 2.04" .375"
