Saint Gobain

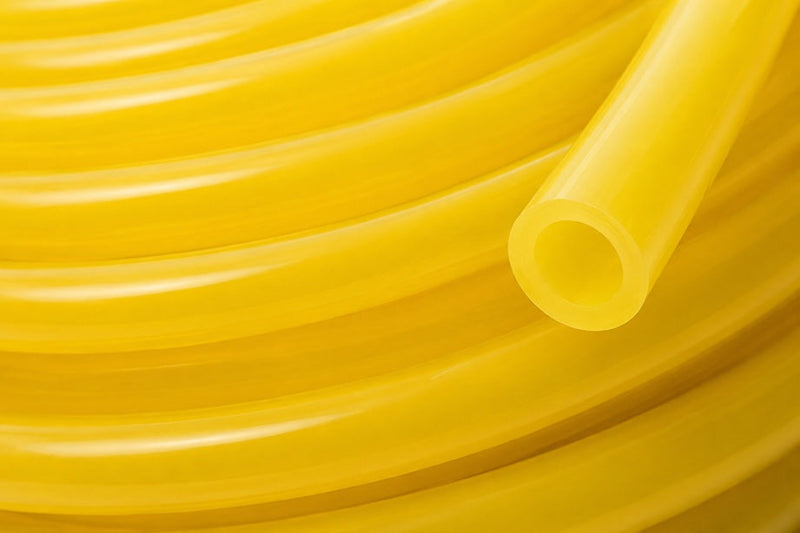

Tygon® Power F-4040-A | Fuel and Lubricant Tubing

Tygon® Power F-4040-A tubing from Saint-Gobain resists the swelling and hardening caused by hydrocarbon-based fluids – significantly reducing the risk of failure due to cracks and leaks.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AAG00165 Saint Gobain
Brand: Tygon
Series: F-4040-A
Hose Color(s): Yellow
Internal Diameter: 0.09375in
Outer Diameter: 0.1875in
Tubing Construction: PVC
High Performance Fuel and Lubricant Tubing for Small Engines

Tygon® Power F-4040-A Tubing

Specifically designed to handle most fuels and industrial lubricants. Tygon® Power F-4040-A tubing is the most requested fuel and lubricant tubing for a variety of applications – from small engine fuel lines to coolant transfer.

1

What is this product used for?
  • Small engine fuel lines
  • General automotive
  • Recreational vehicles
  • Lawn and garden equipment
  • Coolant transfer
  • Heating fuels
  • Cutting compounds
  • Polishing equipment
  • Lubrication lines
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Yellow

Maximum Recommended Operating Temp °F (°C)

165°F (74°C)

Brittleness by Impact Temp., °F (°C)

-35°F (-37°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Resists embrittlement
  • Compatible with most hydrocarbons
  • Resistant to swelling
  • Highly flexible, easy to install
  • Specifically developed for fuels and lubricants
  • Ozone and UV light resistant
4

Which sizes or configurations are available?
Part
Number		 Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Bend
Radius
(in.)		 Max. Suggested
Working Pressure
at 73 deg. F
(PSI)		 Vacuum Rating
at 73 deg. F
(in. Hg)		 Length
AAG00700 .080" .140" .030" 1/4" 40 PSI 29.9 in. Hg 50ft
AAG00165 3/32" 3/16" 3/64" 1/4" 50 PSI 29.9 in. Hg 50ft
AAG00007 1/8" 1/4" 1/16" 3/8" 50 PSI 29.9 in. Hg 50ft
AAG00012 3/16" 5/16" 1/16" 5/8" 35 PSI 29.9 in. Hg 50ft
AAG00017 1/4" 3/8" 1/16" 1" 30 PSI 22.0 in. Hg 50ft
AAG00022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 14.0 in. Hg 50ft
AAG00027 3/8" 1/2" 1/16" 1-7/8" 20 PSI 10.0 in. Hg 50ft
AAG00029 3/8" 5/8" 1/8" 1-1/8" 35 PSI 29.9 in. Hg 50ft
AAG00032 7/16" 9/16" 1/16" 2-3/8" 15 PSI 7.0 in. Hg 50ft
AAG00036 1/2" 5/8" 1/16" 2-7/8" 15 PSI 5.0 in. Hg 50ft
AAG00038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 22.0 in. Hg 50ft
AAG00046 5/8" 7/8" 1/8" 2-1/2" 25 PSI 14.0 in. Hg 50ft
AAG00053 3/4" 1" 1/8" 3-1/4" 20 PSI 10.0 in. Hg 50ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® Power F-4040-A Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
