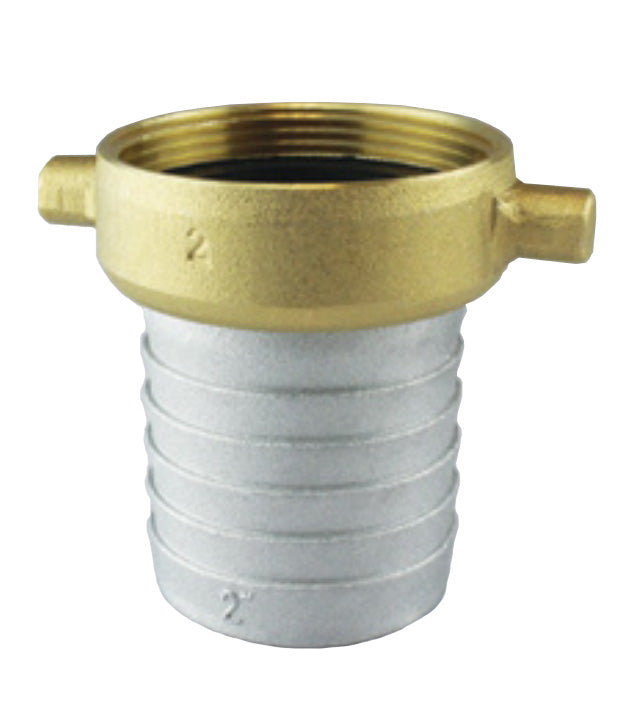

AB200F by Jason Industrial | Pin Lug Coupling | Female End | 2" Female NPSM x 2" Hose Barb | Aluminum with Brass Swivel

AB200F by Jason Industrial | Pin Lug Coupling | Female End | 2" Female NPSM x 2" Hose Barb | Aluminum with Brass Swivel

Save $6.87 Save $6.87
$16.51
$16.51 - $16.51
$16.51
$9.64
$9.64 - $9.64
$9.64

Jason Industrial
Pin Lug Coupling | Female End | Female Thread x Hose Barb | Aluminum with Brass Swivel

Threaded coupling for suction or discharge of water or other fluids.
Specifications for Variant SKU: AB200F Jason
Shape (Orientation): Straight
Ends Configuration: 2in Hose Barb, 2in Female NPSM
Material(s): Aluminum, Brass
Pin Lug Couplings

Jason Industrial | Pin Lug Coupling
Female End
Female Thread x Hose Barb

1

What is this product used for?
  • Threaded coupling for suction or discharge of water or other fluids.
2

What are the main product features?
  • Standard threading is NPSM; National Pipe Straight Mechanical.
  • 1-1/2" and 2-1/2" are available with additional NST thread; American National Fire Hose Straight Thread. (NST does not interchange).
  • Pin lugs are on all sizes of female end.
  • 2-1/2" through 6" also have pin lugs on male end.
3

What are the Material Specs?
  • Aluminum with Brass Swivel Nut.
4

Which sizes or configurations are available?
Part Number Size Thread Type
AB150F 1-1/2" NPSM
AB150NSTF 1-1/2" NST
AB200F 2" NPSM
AB250F 2-1/2" NPSM
AB250NSTF 2-1/2" NST
AB300F 3" NPSM
AB400F 4" NPSM
AB600F 6" NPSM

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
