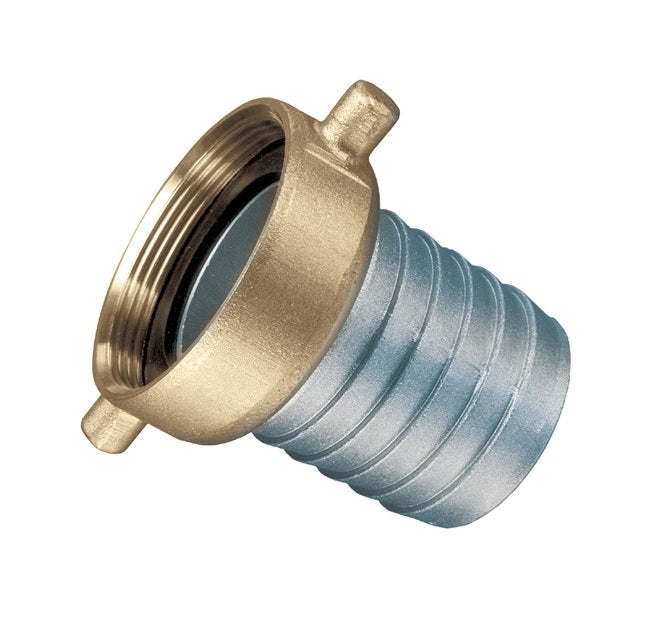

ABF200 by Kuriyama | ABF Series | Pin Lug Coupling | Female End | 2" Hose Barb x 2" Female NPSM | Aluminum with Brass Swivel Nut

Save $7.37

$18.94

$18.94 - $18.94

$18.94

$11.57

$11.57 - $11.57

$11.57

Kuriyama of America Inc.
ABF Series | Pin Lug Hose Shank Coupling | Female End | Hose Barb x Female NPSM | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.

Specifications for Variant SKU: ABF200 Kuriyama
Series:	ABF Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Female NPSM
Material(s):	Aluminum, Brass
Applicable Specs & Approvals:	ASTM B108-92, ASTM B283

What are the Features?

Versatile threaded hose connectors designed for suction and discharge applications.
Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.

What are the Materials?

ASTM B85 Grade 383 aluminum alloy. (2 1/2", 6" sizes)
ASTM B108-92 356 aluminum alloy. (1 1/2", 2", 3", 4" sizes)
ASTM B283 Grade 37700 brass alloy. (1 1/2", 2", 3", 4" sizes)
ASTM B584 Grade C85700 brass alloy. (4", 6" sizes)

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
ABF150	1-1/2"	75 PSI	0.38 lbs
ABF200	2"	75 PSI	0.62 lbs
ABF250	2-1/2"	50 PSI	0.94 lbs
ABF300	3"	50 PSI	1.66 lbs
ABF400	4"	50 PSI	2.72 lbs
ABF600	6"	25 PSI	5.26 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
