ABT2K-48 Alfagomma by Kuriyama | ABT2K Series | Alfabiotech 2000 Minetuff Hydraulic Hose | 4-Wire | 3" ID | 3.64" OD | 2000 PSI | 100ft Length

ABT2K-48 Alfagomma by Kuriyama | ABT2K Series | Alfabiotech 2000 Minetuff Hydraulic Hose | 4-Wire | 3" ID | 3.64" OD | 2000 PSI | 100ft Length

Save $2,388.53 Save $2,388.53
$8,359.86
$8,359.86 - $8,359.86
$8,359.86
$5,971.33
$5,971.33 - $5,971.33
$5,971.33

Kuriyama of America Inc.
Alfagomma | ABT2K Series | Alfabiotech 2000 Minetuff Hydraulic Hose | 4-Wire

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.


Package Quantity: 100 Feet

Specifications for Variant SKU: ABT2K-48 Kuriyama | 100 |
Brand: Alfagomma, Alfabiotech, Minetuff
Series: ABT2K Series
Hose Color(s): Black
Dash Size: -48
Internal Diameter: 3in
Outer Diameter: 3.64in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA IC-152/16, ISO 18752
Compatible with the following Series: VS4 Series
Application: Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing. SAE Rating: -
Other Ratings: ISO 18752/CC 1,000,000+ impulse cycles all sizes
MSHA IC-152/16 Approved Flame Resistance		 Tube: Oil resistant synthetic rubber and biodegradable hydraulic fluids.

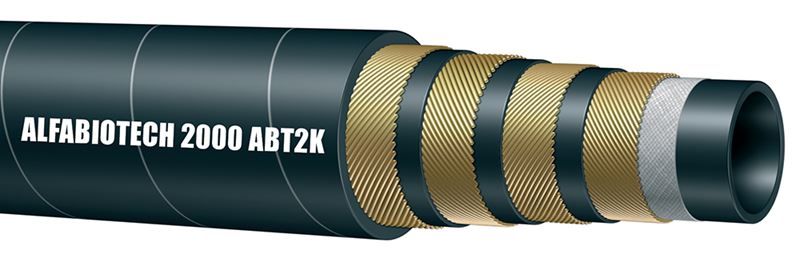

Reinforcement: Four high tensile steel spirals. Cover: Abrasion, ozone and hydrocarbon resistant synthetic rubber.
Service Temperature Range: -40°F (-40°C) to +250°F (+121°C)
Branding: Alfagomma Alfabiotech 2K Minetuff 2000 PSI Hydraulic Service - 3200 PSI Slim Hole Rotary Service MSHA IC-152/16 Made in Italy
Other Features:
  • Specially designed for bio oil full compatibility.
  • Extreme flexibility: up to 50% better bend radius compared to SAE100R.
  • Minetuff cover for top abrasion & ozone resistance.
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
ABT2K-40 2-1/2" 63.5mm 3.11" 79.0mm 2000 PSI 28.3" 718.8mm 3.33 lbs/ft
ABT2K-48 3" 76.2mm 3.64" 92.5mm 2000 PSI 33.0" 838.2mm 3.64 lbs/ft

Note: Slim Hole Rotary Hose Working Pressure 3200 psi, Hydraulic Service 2000 psi.
* Minimum burst pressure 4-to-1 hydraulic service/2.5-to-1 slim hole rotary.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
