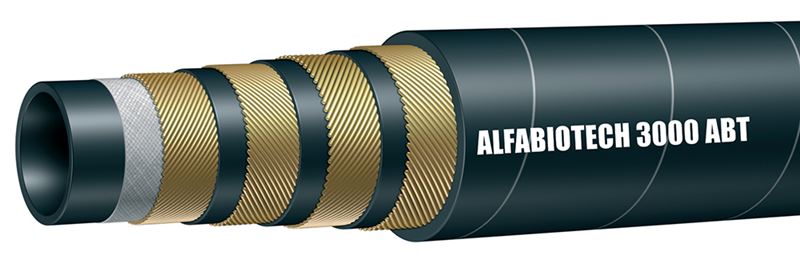

ABT3K-32 Alfagomma by Kuriyama | ABT3K Series | SAE 100R12 | Alfabiotech 3000 Minetuff Hydraulic Hose | 2" ID | 2.63" OD | 3000 PSI | 100ft Length

Save $1,275.07

$4,462.74

$4,462.74 - $4,462.74

$4,462.74

$3,187.67

$3,187.67 - $3,187.67

$3,187.67

Kuriyama of America Inc.
Alfagomma | ABT3K Series | SAE 100R12 | Alfabiotech 3000 Minetuff Hydraulic Hose

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

Package Quantity: 100 Feet

Specifications for Variant SKU: ABT3K-32 Kuriyama \| 100 \|
Brand:	Alfagomma, Alfabiotech, Minetuff
Series:	ABT3K Series
Hose Color(s):	Black
Dash Size:	-32
Internal Diameter:	2in
Outer Diameter:	2.63in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber
Applicable Specs & Approvals:	SAE 100R12, MSHA IC-152/16, ISO 18752
Compatible with the following Series:	D Series \| AS4 Series

Other Features:
Application:	Developed to withstand very demanding conditions very high performance in pressure, pulsing and flexing.	SAE Rating:	Exceeds SAE 100R12 all sizes
Other Ratings:	ISO 18752/CC 1,000,000+ impulse cycles all sizes MSHA IC-152/16 Approved Flame Resistance	Tube:	Oil resistant synthetic rubber and biodegradable hydraulic fluids.
Reinforcement:	Four/six high tensile steel spirals.	Cover:	Abrasion, ozone and hydrocarbon resistant synthetic rubber.
Service Temperature Range:	-40°F (-40°C) to +250°F (+121°C)	Length:	200 feet from 1-1/4" to 1-1/2" 100 feet for 2" and 3"
Branding:	ALFAGOMMA ALFABIOTECH 3K MINETUFF ... WP 21 MPa (3000 PSI) - ISO 18752/CC - exceeds SAE 100 R12 - MSHA IC-152/16 - MADE IN ITALY
Specially designed for bio oil full compatibility. Extreme flexibility: up to 50% better bend radius compared to SAE100R. Minetuff cover for top abrasion & ozone resistance.

Part Number	ID		OD		Max. Working Pressure*	Min Bend Radius		Weight
Part Number	(in.)	(mm)	(in.)	(mm)	PSI	(in.)	(mm)	(lbs./ft.)
ABT3K-32	2"	50.8mm	2.63"	66.8mm	3000 PSI	22.0"	558.8mm	2.69 lbs/ft

Note: Slim Hole Rotary Hose Working Pressure 5000 psi, Hydraulic Service 3000 psi.
* Minimum burst pressure 4-to-1 hydraulic service, 2.5-to-1 slim hole rotary.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
