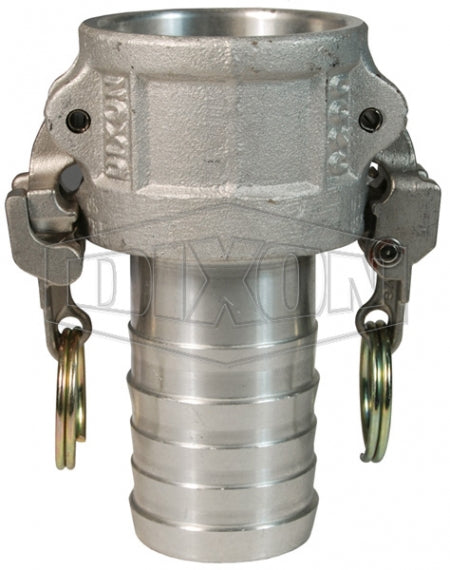

AC200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank | Aluminum

AC200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type C | 2" Coupler x 2" Hose Shank | Aluminum

Save $37.05 Save $37.05
$92.62
$92.62 - $92.62
$92.62
$55.57
$55.57 - $55.57
$55.57

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: AC200EZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 2in Female Cam & Groove, 2in Hose Barb
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm.
  • Rotating action helps keep the locking device free of debris.
  • Designed to protect critical parts from impact and to withstand rugged use.
Construction:
  • Nitrile Rubber gasket
Safety Notes:
  • If the rotating lever is not flush with the handle, it is not properly engaged.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged.
  • Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Brass
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating Pressure
- - RC050EZ 3/4" x 1/2"" 150 PSI
AC075EZ BC075EZ RC075EZ 3/4" 250 PSI
AC100EZ BC100EZ RC100EZCR 1" 250 PSI
- BC125EZ RC125EZCR 1-1/4" 250 PSI
AC150EZ BC150EZ - 1-1/2" 250 PSI
AC200EZ BC200EZ - 2" 250 PSI
AC250EZ - - 2-1/2" 150 PSI
AC300EZ BC300EZ RC300EZCR 3" 125 PSI
AC400EZ BC400EZ RC400EZCR 4" 100 PSI
AC400EZP
(with Paddle Handle)		 - - 4" 150 PSI
AC600EZ - RC600EZCR 6" 75 PSI
AC800EZ** - - 8" 50 PSI

** Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size. Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
