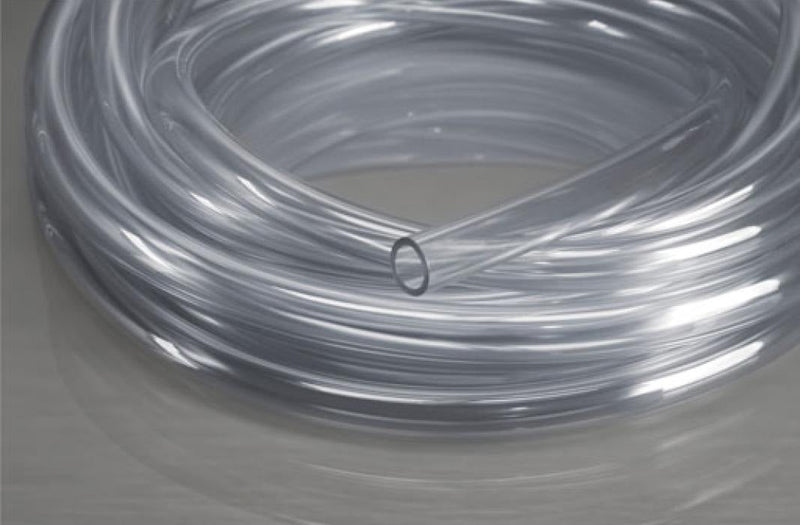

ACF00064 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Tubing | 1" ID x 1-3/8" OD x 3/16" Wall | 50' Package Length

ACF00064 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Tubing | 1" ID x 1-3/8" OD x 3/16" Wall | 50' Package Length

Save $238.36 Save $238.36
$834.27
$834.27 - $834.27
$834.27
$595.91
$595.91 - $595.91
$595.91

Saint Gobain
Tygon S3™ E-3603 | Non-DEHP Phthalate-Free Laboratory Tubing

Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion.

For instrumentation connection, vent, drain, and other general laboratory applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: ACF00064 Saint Gobain
Brand: Tygon S3
Series: E-3603
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.375in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: FDA 21 CFR Part 170.189, Japan Food Sanitation Law No 370/1959, NSF 51, REACH Compliant, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011
Laboratory Tubing

Tygon S3™ E-3603 | Flexible Fuel Tubing

Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion. As a tubing for instrumentation connection, vent, drain and other general laboratory applications, Tygon S3™ E-3603 Tubing offers superior life, which minimizes the labor and expense of replacement. It can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi, 121°C) and ethylene oxide.

1

What is this product used for?
  • General laboratory connections
  • Food & beverage
  • Biopharmaceutical analysis
  • Analytical instrumentation
  • Vacuum pumps
  • Ideal for condensers, incubators, desiccators, gas lines and drain lines
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

165°F (74°C)

Brittle Temperature, °F (°C)

-51°F (-46°C)

Specifications

US FDA food contact criteria
(EU) 10/2011 and (EC) 1935/2004
Japanese Food Sanitation Law 370/1959
NSF®-51, Food Equipment Materials
USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
REACH (EC) 1907/2006

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Bio-based formulation reduces environmental impact.
  • Lot-to-lot consistency for reproducible results.
  • Non-toxic and non-contaminating.
  • Smooth inner wall.
  • Slips easily over fittings and grips securely for simple lab set-ups.
  • No BPA or phthalates intentionally added.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min.
Bend Radius
(in.)		 Max. Working
Pressure
at 73 deg. F (PSI)*		 Vacuum
Rating
at 73 deg. F (in. Hg)		 Length
ACF00001 1/32" 3/32" 1/32" 1/8" 69 PSI 29.9 in. Hg 50ft
ACF00002 1/16" 1/8" 1/32" 1/4" 36 PSI 29.9 in. Hg 50ft
ACF02002 1/16" 1/8" 1/32" 1/8" 36 PSI 29.9 in. Hg 100ft
ACF00003 1/16" 3/16" 1/16" 1/8" 69 PSI 29.9 in. Hg 50ft
ACF00004 3/32" 5/32" 1/32" 3/8" 25 PSI 29.9 in. Hg 50ft
ACF02004 3/32" 5/32" 1/32" 3/8" 25 PSI 29.9 in. Hg 100ft
ACF00005 3/32" 7/32" 1/16" 1/4" 47 PSI 29.9 in. Hg 50ft
ACF00006 1/8" 3/16" 1/32" 1/2" 20 PSI 20 in. Hg 50ft
ACF00007 1/8" 1/4" 1/16" 3/8" 36 PSI 29.9 in. Hg 50ft
ACF02007 1/8" 1/4" 1/16" 3/8" 36 PSI 29.9 in. Hg 100ft
ACF00009 5/32" 7/32" 1/32" 3/8" 17 PSI 12 in. Hg 50ft
ACF00010 5/32" 9/32" 1/16" 1/2" 30 PSI 29.9 in. Hg 50ft
ACF02010 5/32" 9/32" 1/16" 1/2" 30 PSI 29.9 in. Hg 100ft
ACF00011 3/16" 1/4" 1/32" 1" 14 PSI 9 in. Hg 50ft
ACF00012 3/16" 5/16" 1/16" 5/8" 25 PSI 29.9 in. Hg 50ft
ACF02012 3/16" 5/16" 1/16" 5/8" 25 PSI 29.9 in. Hg 100ft
ACF00013 3/16" 3/8" 3/32" 1/2" 36 PSI 29.9 in. Hg 50ft
ACF00014 3/16" 7/16" 1/8" 3/8" 47 PSI 29.9 in. Hg 50ft
ACF00016 1/4" 5/16" 1/32" 1-5/8" 12 PSI 5 in. Hg 50ft
ACF00017 1/4" 3/8" 1/16" 1" 20 PSI 20 in. Hg 50ft
ACF02017 1/4" 3/8" 1/16" 1" 20 PSI 20 in. Hg 100ft
ACF00018 1/4" 7/16" 3/32" 3/4" 28 PSI 29.9 in. Hg 50ft
ACF00019 1/4" 1/2" 1/8" 1/2" 36 PSI 29.9 in. Hg 50ft
ACF02019 1/4" 1/2" 1/8" 1/2" 36 PSI 29.9 in. Hg 100ft
ACF00022 5/16" 7/16" 1/16" 1-3/8" 17 PSI 13 in. Hg 50ft
ACF00023 5/16" 1/2" 3/32" 1" 23 PSI 29.9 in. Hg 50ft
ACF00024 5/16" 9/16" 1/8" 7/8" 30 PSI 29.9 in. Hg 50ft
ACF00025 5/16" 5/8" 5/32" 3/4" 36 PSI 29.9 in. Hg 50ft
ACF00027 3/8" 1/2" 1/16" 1-1/2" 14 PSI 9 in. Hg 50ft
ACF00028 3/8" 9/16" 3/32" 1-3/8" 20 PSI 21 in. Hg 50ft
ACF00029 3/8" 5/8" 1/8" 1-1/8" 25 PSI 29.9 in. Hg 50ft
ACF00032 7/16" 9/16" 1/16" 2-1/4" 13 PSI 7 in. Hg 50ft
ACF00033 7/16" 5/8" 3/32" 1-3/4" 18 PSI 15 in. Hg 50ft
ACF00034 7/16" 11/16" 1/8" 1-3/8" 22 PSI 28 in. Hg 50ft
ACF00036 1/2" 5/8" 1/16" 2-7/8" 12 PSI 5 in. Hg 50ft
ACF00037 1/2" 11/16" 3/32" 2-1/4" 15 PSI 12 in. Hg 50ft
ACF02037 1/2" 11/16" 3/32" 2-1/4" 15 PSI 12 in. Hg 100ft
ACF00038 1/2" 3/4" 1/8" 1-1/2" 20 PSI 21 in. Hg 50ft
ACF00039 1/2" 13/16" 5/32" 1-1/2" 24 PSI 29.9 in. Hg 50ft
ACF00041 9/16" 3/4" 3/32" 2-1/2" 14 PSI 9 in. Hg 50ft
ACF00042 9/16" 13/16" 1/8" 2" 18 PSI 17 in. Hg 50ft
ACF00045 5/8" 13/16" 3/32" 3" 13 PSI 7 in. Hg 50ft
ACF00046 5/8" 7/8" 1/8" 2-3/8" 17 PSI 13 in. Hg 50ft
ACF00047 5/8" 15/16" 5/32" 2" 20 PSI 21 in. Hg 50ft
ACF00050 11/16" 7/8" 3/32" 3-1/2" 12 PSI 6 in. Hg 50ft
ACF00053 3/4" 1" 1/8" 3-1/4" 14 PSI 9 in. Hg 50ft
ACF00054 3/4" 1-1/16" 5/32" 2-3/4" 17 PSI 15 in. Hg 50ft
ACF00055 3/4" 1-1/8" 3/16" 2-3/8" 20 PSI 21 in. Hg 50ft
ACF00057 3/4" 1-1/4" 1/4" 2" 25 PSI 29.9 in. Hg 50ft
ACF00059 7/8" 1-1/8" 1/8" 4-1/8" 13 PSI 7 in. Hg 50ft
ACF00060 7/8" 1-3/16" 5/32" 3-1/2" 15 PSI 11 in. Hg 50ft
ACF00062 1" 1-1/4" 1/8" 4-3/4" 12 PSI 5 in. Hg 50ft
ACF00064 1" 1-3/8" 3/16" 4" 16 PSI 12 in. Hg 50ft
ACF00065 1" 1-1/2" 1/4" 3" 20 PSI 21 in. Hg 50ft
ACF00068 1-1/8" 1-1/2" 3/16" 4-1/2" 14 PSI 9 in. Hg 50ft
ACF00069 1-1/4" 1-1/2" 1/8" 7-7/8" 10 PSI 3 in. Hg 50ft
ACF00070 1-1/4" 1-5/8" 3/16" 5-1/2" 13 PSI 7 in. Hg 50ft
ACF00073 1-1/2" 1-7/8" 3/16" 7-1/4" 12 PSI 5 in. Hg 50ft
ACF00074 1-1/2" 2" 1/4" 5-7/8" 14 PSI 9 in. Hg 50ft
ACF00076 1-3/4" 2-1/4" 1/4" 7-1/2" 13 PSI 7 in. Hg 50ft
ACF00078 2" 2-1/2" 1/4" 9-3/8" 12 PSI 5 in. Hg 50ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon S3™ E-3603 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
