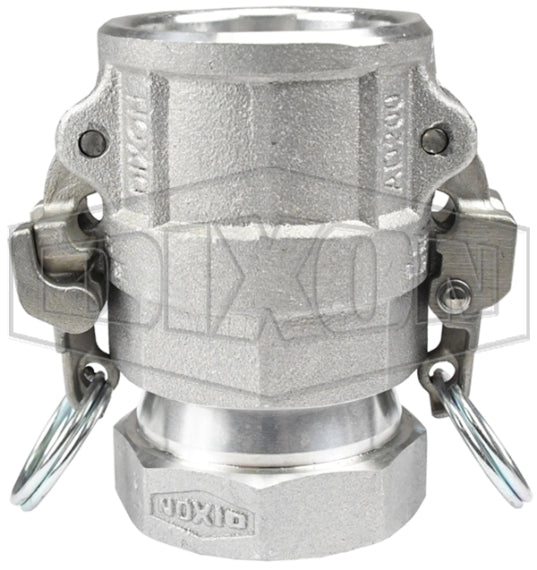

AD300EZSWIV by Dixon Valve | Swivel Cam & Groove Adapter | Type C | 3" Coupler x 3" Female NPT| Aluminum

AD300EZSWIV by Dixon Valve | Swivel Cam & Groove Coupler | Type D | 3" Coupler x 3" Female NPT | Aluminum

Save $129.15 Save $129.15
$322.87
$322.87 - $322.87
$322.87
$193.72
$193.72 - $193.72
$193.72

Dixon Valve
Swivel Coupling Cam & Groove | Type D Coupler | Coupler x Female NPT

Live swivel is capable of 360-degree rotation under pressure.
Specifications for Variant SKU: AD300EZSWIV Dixon
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 3in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel
Features:
  • Nitrile rubber X-ring seal for reduced friction and high stability in dynamic applications.
  • Couplers inculde EZ Boss-Lock cam arms.
  • Gasket: nitrile rubber.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Maximum Operating Pressure
AD200EZSWIV RD200EZSWIV 2" 250 PSI
AD300EZSWIV RD300EZSWIV 3" 125 PSI
AD400EZSWIV RD400EZSWIV 4" 100 PSI
