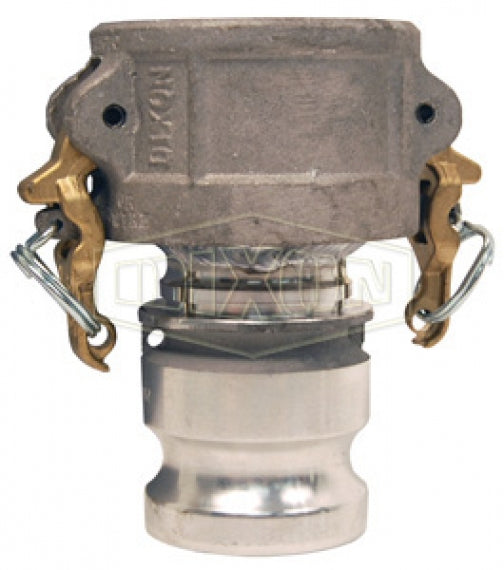

ADA6040 by Dixon Valve | Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 6" Coupler x 4" Adapter | Aluminum

ADA6040 by Dixon Valve | Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 6" Coupler x 4" Adapter | Aluminum

Save $286.37 Save $286.37
$715.92
$715.92 - $715.92
$715.92
$429.55
$429.55 - $429.55
$429.55

Dixon Valve
Boss-Lock Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.
Specifications for Variant SKU: ADA6040 Dixon
Brand: Boss-Lock
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 4in Male Cam & Groove
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
  • All Boss-Lock couplers are supplied with pull-ring safety clips.
Safety Notes:
  • The 8" coupler only interchanges with 8" Boss-Lock couplings.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Adapter		 Max. Operating Pressure
ADA2030* RDA2030BL* 2" x 3" 125 PSI
ADA2520* - 2-1/2" x 2" 150 PSI
ADA2530* - 2-1/2" x 3" 125 PSI
ADA3020 RDA3020BL 3" x 2" 125 PSI
ADA3040* RDA3040BL* 3" x 4" 100 PSI
ADA4020* RDA4020BL* 4" x 2" 100 PSI
ADA4030 RDA4030BL 4" x 3" 100 PSI
ADA6040* - 6" x 4" 75 PSI
ADA8060* - 8" x 6" 50 PSI

* Parts are produced as a welded fabrication
