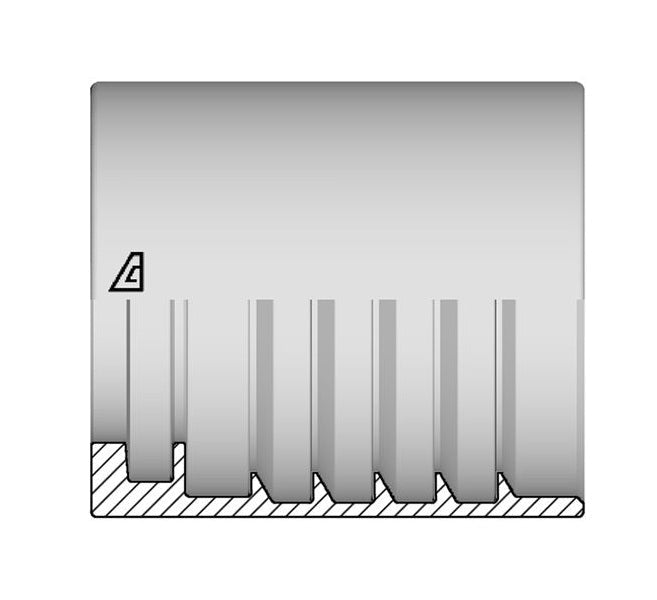

AF1-24 Alfagomma by Kuriyama | A Series / AF1 Series | Two-Piece Non-Skive Ferrule | -24 Hose Dash Size | 1-1/2" Hose ID | Steel

AF1-24 Alfagomma by Kuriyama | A Series / AF1 Series | Two-Piece Non-Skive Ferrule | -24 Hose Dash Size | 1-1/2" Hose ID | Steel

Save $9.58 Save $9.58
$33.52
$33.52 - $33.52
$33.52
$23.94
$23.94 - $23.94
$23.94

Kuriyama of America Inc.
Alfagomma | A Series / AF1 Series | Two-Piece Non-Skive Ferrule
Specifications for Variant SKU: AF1-24 Kuriyama
Brand: Alfagomma
Series: A Series, AF1 Series
Material(s): Steel
Compatible with the following Series: TR1MT Series  |   T1SNTT Series  |   TF2MT Series  |   TF2ST Series  |   TF2LT Series  |   AT3KMT Series  |   AT3KST Series  |   TAJ3BK Series  |   TAJ3BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About A Series / AF1 Series Ferrules:
  • Two piece non-skive ferrule for use with:
    • "A" insert on single wire braided and compact hydraulic hoses
    • Flexor 1 (TR1MT, T1SNTT)
    • Flexopak 2 (TF2MT, TF2ST, TF2LT)
    • Alfatech 3000 (AT3KMT, AT3KST)
    • Alfajet 210 (TAJ3BK/BU)
    • Alfajet 400 (TAJ5BK/BU)
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Dash
Size		 Hose ID Size B
OD		 L
Length		 Weight
(in.) (mm) (mm) (mm) lbs/each
AF1-03 - 03 3/16" 4.8mm 19.0mm 24.0mm 0.05 lbs
AF1-04 AF1-04-SS 04 1/4" 6.4mm 22mm 24.7mm 0.06 lbs
AF1-05 - 05 5/16" 7.9mm 23mm 24.7mm 0.07 lbs
AF1-06 AF1-06-SS 06 3/8" 9.5mm 26mm 29.7mm 0.10 lbs
AF1-08 AF1-08-SS 08 1/2" 12.7mm 29mm 30.5mm 0.11 lbs
AF1-10 AF1-10-SS 10 5/8" 15.9mm 32mm 30.5mm 0.12 lbs
AF1-12 AF1-12-SS 12 3/4" 19.0mm 36mm 36.0mm 0.17 lbs
AF1-16 - 16 1" 25.4mm 44mm 36.7mm 0.24 lbs
AF1-20 - 20 1-1/4" 31.8mm 53mm 48.6mm 0.40 lbs
AF1-24 - 24 1-1/2" 38.1mm 61mm 48.6mm 0.50 lbs
AF1-32 - 32 2" 50.8mm 75mm 48.6mm 0.70 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
