AFT-10 Alfagomma by Kuriyama | A Series / AFT Series | Two-Piece Non-Skive Ferrule | -10 Hose Dash Size | 5/8" Hose ID | Stainless Steel | Pack of 5

Save $31.60

$74.25

$74.25 - $74.25

$74.25

$42.65

$42.65 - $42.65

$42.65

Kuriyama of America Inc.

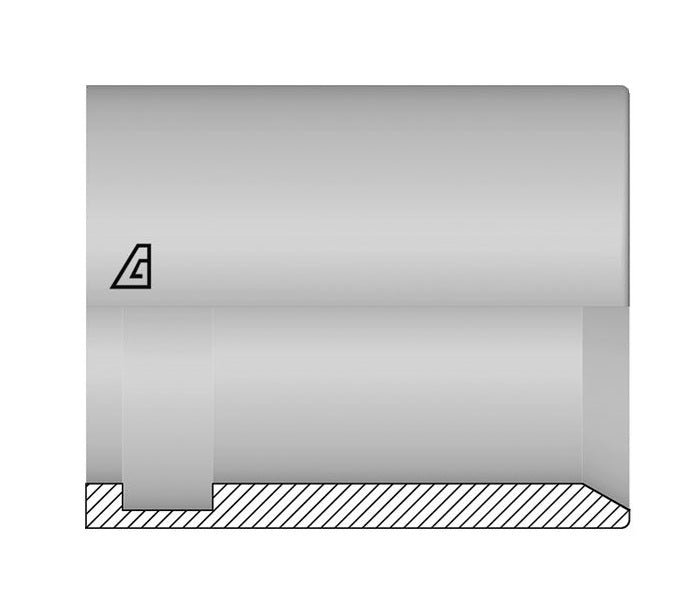

Alfagomma | A Series / AFT Series | Two-Piece Non-Skive Ferrule

Specifications for Variant SKU: AFT-10 Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series, AFT Series
Material(s):	Stainless Steel
Compatible with the following Series:	TR14TB Series

About A Series / AFT Series Ferrules:
Two piece non-skive stainless steel ferrule for use with "A" insert on stainless braided PTFE hose (TR14TB).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
AFT-03	03	3/16"	4.8mm	14.0mm	20mm	0.02 lbs
AFT-04	04	1/4"	6.4mm	15.0mm	25mm	0.03 lbs
AFT-05	05	5/16"	7.9mm	17.2mm	25mm	0.04 lbs
AFT-06	06	3/8"	9.5mm	22.0mm	25mm	0.07 lbs
AFT-08	08	1/2"	12.7mm	25.0mm	30mm	0.08 lbs
AFT-10	10	5/8"	15.9mm	30.0mm	33mm	0.11 lbs
AFT-12	12	3/4"	19.0mm	35.0mm	37mm	0.15 lbs
AFT-16	16	1"	25.4mm	42.0mm	45mm	0.26 lbs
AFT-20	20	1-1/4"	31.8mm	50.0mm	48mm	0.34 lbs
AFT-24	24	1-1/2"	38.1mm	57.0mm	58mm	0.48 lbs
AFT-32	32	2"	50.8mm	73.0mm	67mm	0.73 lbs
