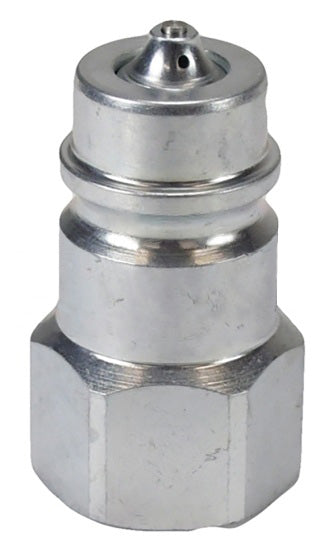

AGE4OF4-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1/2" Female ORB x 1/2" Agricultural Interchange Connect Under Residual Pressure | Plug | Steel

AGE4OF4-PV by Dixon Valve | Hydraulic Quick Disconnect Coupling | AG-Series | 1/2" Female ORB x 1/2" Agricultural Interchange Connect Under Residual Pressure | Plug | Steel

Save $10.21 Save $10.21
$25.52
$25.52 - $25.52
$25.52
$15.31
$15.31 - $15.31
$15.31

Dixon Valve & Coupling
Hydraulic Coupling: AG-Series Agricultural Interchange Connect Under Residual Pressure Plug (Female Threads)

Used with Hydraulic Fluid.
Specifications for Variant SKU: AGE4OF4-PV Dixon
Series: AG-Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male ISO-5675 Farm (Agricultural) QD Interchange, 1/2in Female O-Ring Boss
Material(s): Steel
Compatibility & Interchange:
  • Pioneer Agricultural Interchange
  • Parker/Pioneer 4000 Series, Faster NS/NV Series
  • Safeway Series-S20, Stucchi IR-Series
Construction:
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
  • Steel nipples are hardened to provide heavy duty performance and resist brinelling.
Additional Information:
AG-Series | Agricultural Interchange Connect Under Residual Pressure Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max.
Operating
Pressure		 Burst
Pressure
AGE4F4-PV Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 2.03"
(51.56mm)		 1.20"
(30.48mm)		 1-1/16" 4000 PSI 16500 PSI
(1100 bar)
AGE4OF4-PV Plug/Male 1/2" 3/4" - 16 Female NPTF Steel 2.03"
(51.56mm)		 1.20"
(30.48mm)		 1-1/16" 4000 PSI 16500 PSI
(1100 bar)
