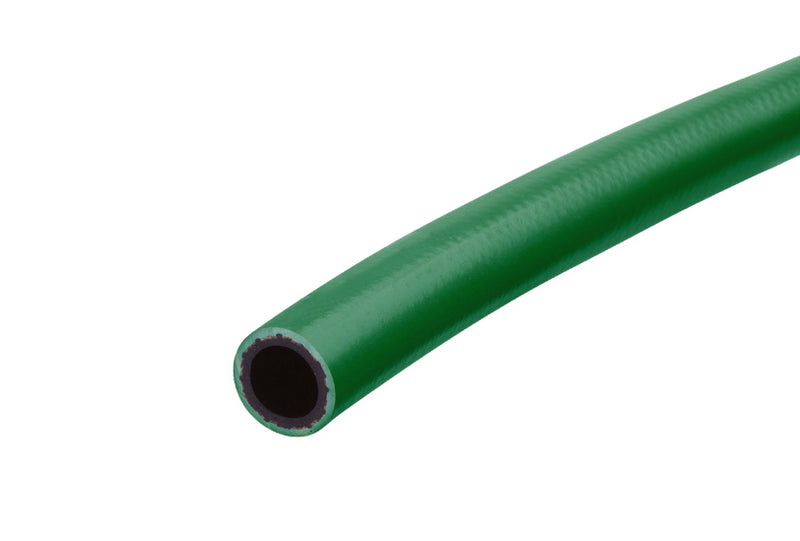

AL-08GR Alfagomma by Kuriyama | AL Series | Autolock Braided Push-On Hose | 1/2" ID | 0.75" OD | 400 PSI | Green | 550ft Length
AL-08GR Alfagomma by Kuriyama | AL Series | Autolock Braided Push-On Hose | 1/2" ID | 0.75" OD | 400 PSI | Green | 550ft Length
AL-08GR Alfagomma by Kuriyama | AL Series | Autolock Braided Push-On Hose | 1/2" ID | 0.75" OD | 400 PSI | Green | 550ft Length

AL-08GR Alfagomma by Kuriyama | AL Series | Autolock Braided Push-On Hose | 1/2" ID | 0.75" OD | 400 PSI | Green | 550ft Length

Save $489.04 Save $489.04
$1,711.65
$1,711.65 - $1,711.65
$1,711.65
$1,222.61
$1,222.61 - $1,222.61
$1,222.61

Kuriyama of America Inc.
Alfagomma | AL Series | Autolock Braided Push-On Hose

Ideal for air tools, pneumatic and low-pressure hydraulic systems, fluid transfer, molding equipment, robotic welders, and use in chemical, paper, and automation industries.


Package Quantity: 550 Feet

Specifications for Variant SKU: AL-08GR Kuriyama | 550 |
Brand: Alfagomma
Series: AL Series
Hose Color(s): Green
Dash Size: -08
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: Synthetic Rubber
Applicable Specs & Approvals: Applicable MSHA Standards
Application: Air tools
Pneumatic and low-pressure hydraulic systems.
Lubricating oils, diesel fuel and antifreeze solutions.
Water lines for molding and blow-forming machines.
Robotic welders.
Chemical and paper industries.
Automation and machine tools.		 SAE Rating: -
Other Ratings: MSHA-approved
ARPM Class A		 Tube: Oil-resistant synthetic rubber (ARPM Class A)
Reinforcement: High-strength textile braid for secure fi tting retention. Cover: Abrasion, ozone, and flame resistant cover (MSHA-approved)
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C)*
-40°F (-40°C) to +160°F (+70°C) for air transfer*
*Actual service temperature range is application dependent.
Branding: ALFAGOMMA - AUTOLOCK EVOLUTION - NON CONDUCTIVE ___ [ID Size] WP ___ PSI FLAME RESISTANT MSHA IC-152/21 - [Date Code]
Other Features:
  • Safety Factor: 4:1
  • Push-On Assembly: Easy to connect, no clamps or tools required.
  • Flame Resistance: MSHA-approved cover for safety in hazardous environments (No. IC-152/21).
  • Durable Construction: Long-lasting, resistant to wear, ozone, and hydrocarbons.
  • Oil Resistant Tube: Meets APRM Class A (High Oil Resistance) Rating, for use with gasoline, diesel, biodiesel and kerosene.
  • Non-conductive Tube and Cover^: Helps protect user from shock when used near high-voltage sources.
  • Mandrel-Built Braided Construction Quality:
    • Stable under pressure with minimal expansion and twisting.
    • Better kink resistance and dimensional consistency.
    • Superior pressure tolerance compared to competitors.
    • Highly flexible design, works well in tight spaces.
  • NOTE: Reels of various lengths (see chart). Max two or three** pieces per reel (Min piece length 50').

**Max three pieces for 1/4" through 1/2" ID, max two pieces for 5/8" through 1"
^ Meets a minimum of 1,000,000 ohms per inch resistance when tested with a 1,000-volt D.C. megger.

Black
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04BK Black 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-05BK Black 5/16" 8mm 0.55" 14mm 400 PSI 600 ft Max 3 pieces of various lengths 0.1 lbs/ft
AL-06BK Black 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08BK Black 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10BK Black 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12BK Black 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
AL-16BK Black 1" 25mm 1.34" 34mm 250 PSI 200 ft Max 2 pieces of various lengths 0.35 lbs/ft
Blue
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04BU Blue 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-06BU Blue 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08BU Blue 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10BU Blue 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12BU Blue 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
AL-16BU Blue 1" 25mm 1.34" 34mm 250 PSI 200 ft Max 2 pieces of various lengths 0.35 lbs/ft
Green
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04GR Green 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-06GR Green 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08GR Green 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10GR Green 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12GR Green 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
Gray
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04GY Gray 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-06GY Gray 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08GY Gray 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10GY Gray 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12GY Gray 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
Red
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04RD Red 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-06RD Red 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08RD Red 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10RD Red 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12RD Red 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
AL-16RD Red 1" 25mm 1.34" 34mm 250 PSI 200 ft Max 2 pieces of various lengths 0.35 lbs/ft
Yellow
Part Number Color ID OD WorkingPressure ApproximateReel Length Packaging† Weight
in mm in mm (psi) (ft) (per reel) lbs/ft
AL-04YL Yellow 1/4" 6mm 0.51" 13mm 400 PSI 600 ft Max 3 pieces of various lengths 0.09 lbs/ft
AL-06YL Yellow 3/8" 10mm 0.63" 16mm 400 PSI 600 ft Max 3 pieces of various lengths 0.12 lbs/ft
AL-08YL Yellow 1/2" 13mm 0.75" 19mm 400 PSI 550 ft Max 3 pieces of various lengths 0.15 lbs/ft
AL-10YL Yellow 5/8" 16mm 0.91" 23mm 350 PSI 350 ft Max 2 pieces of various lengths 0.21 lbs/ft
AL-12YL Yellow 3/4" 19mm 1.06" 27mm 300 PSI 350 ft Max 2 pieces of various lengths 0.25 lbs/ft
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
