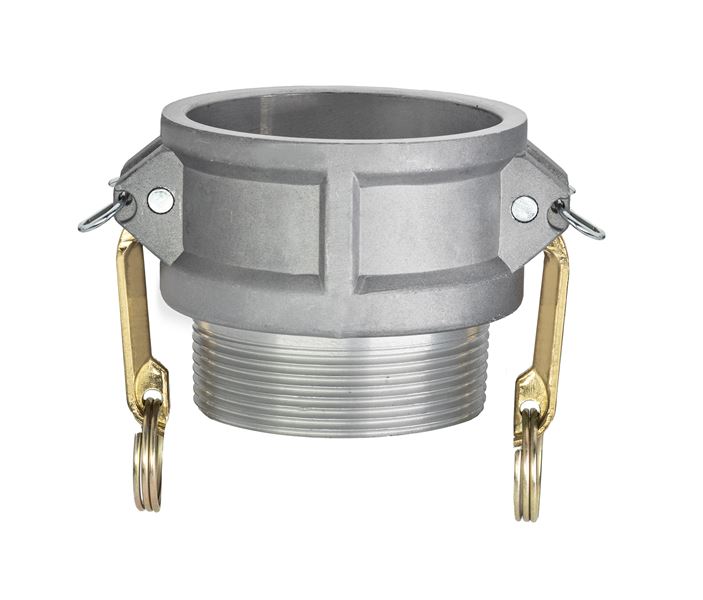

AL-B600 by Kuriyama | AL-B Series | Part B | Cam & Groove Adapter | 6" Coupler x 6" Male NPT | Aluminum

Save $22.87

$124.07

$124.07 - $124.07

$124.07

$101.20

$101.20 - $101.20

$101.20

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-B Series | Part B | Coupler x Male NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: AL-B600 Kuriyama
Series:	AL-B Series
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	6in Female Cam & Groove, 6in Male NPT
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

Easy to install and disassemble.
High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Supplied with forged brass handles which results in less wear on connecting parts.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Coupler Size (in)	Thread Size Female NPT (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
AL-B050	1/2"	1/2"	250 PSI	B108-92 356	0.18 lbs
AL-B075	3/4"	3/4"	250 PSI	B85 Grade 383	0.24 lbs
AL-B100	1"	1"	250 PSI	B85 Grade 383	0.36 lbs
AL-B125	1-1/4"	1-1/4"	250 PSI	B108-92 356	0.62 lbs
AL-B150	1-1/2"	1-1/2"	250 PSI	B85 Grade 383	0.70 lbs
AL-B200	2"	2"	250 PSI	B85 Grade 383	0.86 lbs
AL-B2015	2"	1-1/2"	250 PSI	B85 Grade 383	0.84 lbs
AL-B2030	2"	3"	250 PSI	B85 Grade 383	1.43 lbs
AL-B250	2-1/2"	2-1/2"	150 PSI	B85 Grade 383	1.02 lbs
AL-B300	3"	3"	150 PSI	B85 Grade 383	1.56 lbs
AL-B3020	3"	2"	150 PSI	B85 Grade 383	1.57 lbs
AL-B3040	3"	4"	150 PSI	B85 Grade 383	2.45 lbs
AL-B400	4"	4"	150 PSI	B85 Grade 383	2.42 lbs
AL-B4030	4"	3"	150 PSI	B85 Grade 383	2.31 lbs
AL-B500	5"	5"	75 PSI	B108-92 356	3.34 lbs
AL-B600	6"	6"	75 PSI	B85 Grade 383	4.984 lbs
AL-B800*	8"	8"	50 PSI	B108-92 356	8.03 lbs
AL-B1000	10"	10"	50 PSI	B26, Grade 713	12.13 lbs
HDAL-B801*	8"	8"	50 PSI	B26, Grade 713	10.54 lbs

* To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is our AL-B800. If the measurement is more than 9" it is our HDAL-B801.
