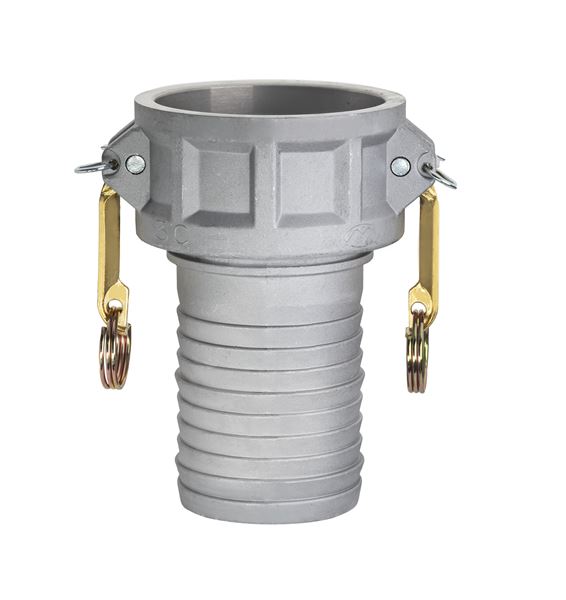

AL-C4030 by Kuriyama | AL-C Series | Part C | Cam & Groove Fitting | 4" Coupler x 3" Hose Barb | Aluminum

AL-C4030 by Kuriyama | AL-C Series | Part C | Cam & Groove Fitting | 4" Coupler x 3" Hose Barb | Aluminum

Save $16.03 Save $16.03
$73.53
$73.53 - $73.53
$73.53
$57.50
$57.50 - $57.50
$57.50

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | AL-C Series | Part C | Coupler x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-C4030 Kuriyama
Series: AL-C Series
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 4in Female Cam & Groove, 3in Hose Barb
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Tri-Couple™ design available in 1-1/2", 2", 2-1/2", 3", 4", 6" sizes.
  • Hose Barbs especially designed for easy assembly with Tigerflex™ type hoses.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • 8" & 10" sizes supplied with four brass handles.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Thread Size
Female NPT
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight Each
(lbs)
AL-C050 1/2" 1/2" 250 PSI B108-92 356 0.20 lbs
AL-C075 3/4" 3/4" 250 PSI B85 Grade 383 0.26 lbs
AL-C100 1" 1" 250 PSI B85 Grade 383 0.42 lbs
AL-C125 1-1/4" 1-1/4" 250 PSI B108-92 356 0.68 lbs
AL-C150** 1-1/2" 1-1/2" 250 PSI B85 Grade 383 0.74 lbs
AL-C200** 2" 2" 250 PSI B85 Grade 383 0.98 lbs
AL-C2015 2" 1-1/2" 250 PSI B85 Grade 383 0.93 lbs
AL-C250** 2-1/2" 2-1/2" 150 PSI B85 Grade 383 1.28 lbs
AL-C300** 3" 3" 150 PSI B85 Grade 383 2.20 lbs
AL-C3020 3" 2" 150 PSI B85 Grade 383 1.74 lbs
AL-C3040 3" 4" 150 PSI B85 Grade 383 2.29 lbs
AL-C400** 4" 4" 150 PSI B85 Grade 383 3.16 lbs
AL-C4030 4" 3" 150 PSI B85 Grade 383 2.94 lbs
AL-C500 5" 5" 75 PSI B108-92 356 3.88 lbs
AL-C600** 6" 6" 75 PSI B85 Grade 383 7.70 lbs
AL-C800* 8" 8" 50 PSI B108-92 356 10.83 lbs
AL-C1000 10" 10" 50 PSI B26, Grade 713 16.67 lbs
HDAL-C801* 8" 8" 50 PSI B26, Grade 713 12.58 lbs

** Designates Tri-Couple Fitting.

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-B800. If the measurement is more than 9" it is HDAL-B801.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
