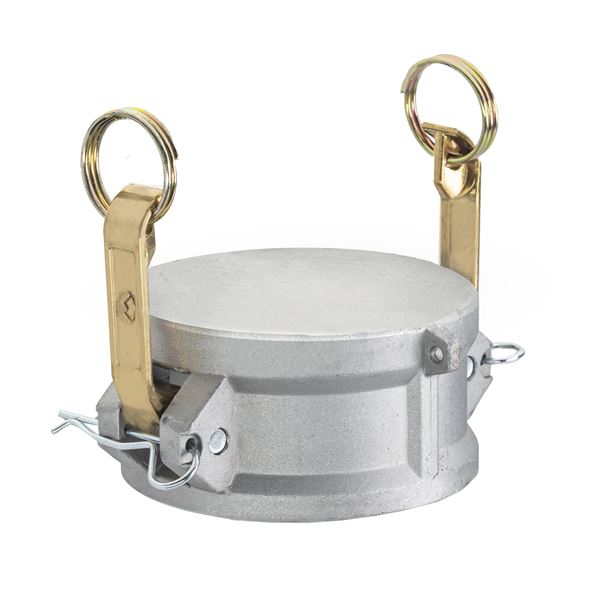

AL-DC125 by Kuriyama | AL-DC Series | Part DC | Cam & Groove Dust Cap | 1-1/4" Size | Aluminum

AL-DC125 by Kuriyama | AL-DC Series | Part DC | Cam & Groove Dust Cap | 1-1/4" Size | Aluminum

Save $8.59 Save $8.59
$26.27
$26.27 - $26.27
$26.27
$17.68
$17.68 - $17.68
$17.68

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Cap | AL-DC Series | Part DC | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-DC125 Kuriyama
Series: AL-DC Series
Cam Type: Type DC
Ends Configuration: 1-1/4in Female Cam & Groove
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • 8" & 10" sizes supplied with four brass handles.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
AL-DC050 1/2" 250 PSI B108-92 356 0.18 lbs
AL-DC075 3/4" 250 PSI B85 Grade 383 0.22 lbs
AL-DC100 1" 250 PSI B85 Grade 383 0.34 lbs
AL-DC125 1-1/4" 250 PSI B108-92 356 0.58 lbs
AL-DC150 1-1/2" 250 PSI B85 Grade 383 0.64 lbs
AL-DC200 2" 250 PSI B85 Grade 383 0.80 lbs
AL-DC250 2-1/2" 150 PSI B85 Grade 383 0.94 lbs
AL-DC300 3" 150 PSI B85 Grade 383 1.44 lbs
AL-DC400 4" 150 PSI B85 Grade 383 2.34 lbs
AL-DC500 5" 75 PSI B108-92 356 3.06 lbs
AL-DC600 6" 75 PSI B85 Grade 383 4.66 lbs
AL-DC800* 8" 50 PSI B108-92 356 9.04 lbs
AL-DC1000 10" 50 PSI B26, Grade 713 12.54 lbs
HDAL-DC801* 8" 50 PSI B26, Grade 713 10.63 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-DC800. If the measurement is more than 9" it is HDAL-DC801.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
