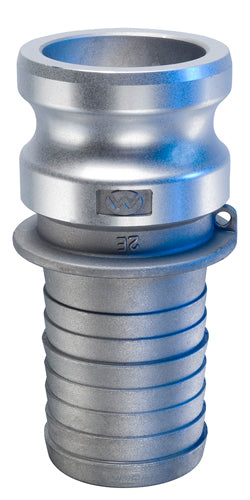

AL-E125 by Kuriyama | AL-E Series | Part E | Cam & Groove Fitting | 1-1/4" Adapter x 1-1/4" Hose Barb | Aluminum

Save $6.14

$14.38

$14.38 - $14.38

$14.38

$8.24

$8.24 - $8.24

$8.24

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | AL-E Series | Part E | Adapter x Hose Barb | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: AL-E125 Kuriyama
Series:	AL-E Series
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	1-1/4in Male Cam & Groove, 1-1/4in Hose Barb
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Tri-Couple™ design available in 1-1/2", 2", 2-1/2", 3", 4", 6" sizes.
Hose Barbs especially designed for easy assembly with Tigerflex™ type hoses.
Kuriyama offers two 8" coupling styles in aluminum.*
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Adapter Size (in)	Hose Barb Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
AL-E050	1/2"	1/2"	250 PSI	B211 Grade 6063	0.08 lbs
AL-E075	3/4"	3/4"	250 PSI	B85 Grade 383	0.11 lbs
AL-E100	1"	1"	250 PSI	B85 Grade 383	0.20 lbs
AL-E125	1-1/4"	1-1/4"	250 PSI	B108-92 356	0.26 lbs
AL-E150**	1-1/2"	1-1/2"	250 PSI	B85 Grade 383	0.38 lbs
AL-E200**	2"	2"	250 PSI	B85 Grade 383	0.60 lbs
AL-E2015	2"	1-1/2"	250 PSI	B85 Grade 383	0.64 lbs
AL-E250**	2-1/2"	2-1/2"	150 PSI	B85 Grade 383	0.86 lbs
AL-E300**	3"	3"	150 PSI	B85 Grade 383	1.32 lbs
AL-E3020	3"	2"	150 PSI	B85 Grade 383	1.12 lbs
AL-E3040	3"	4"	150 PSI	B85 Grade 383	1.90 lbs
AL-E400**	4"	4"	150 PSI	B85 Grade 383	2.10 lbs
AL-E4030	4"	3"	150 PSI	B85 Grade 383	2.03 lbs
AL-E500	5"	5"	75 PSI	B108-92 356	3.56 lbs
AL-E600**	6"	6"	75 PSI	B85 Grade 383	6.16 lbs
AL-E800*	8"	8"	50 PSI	B108-92 356	7.73 lbs
AL-E1000	10"	10"	50 PSI	B26, Grade 713	12.90 lbs
HDAL-E801*	8"	8"	50 PSI	B26, Grade 713	9.75 lbs

** Tri-Couple Style

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-E800. If the measurement is more than 9" it is HDAL-E801.
