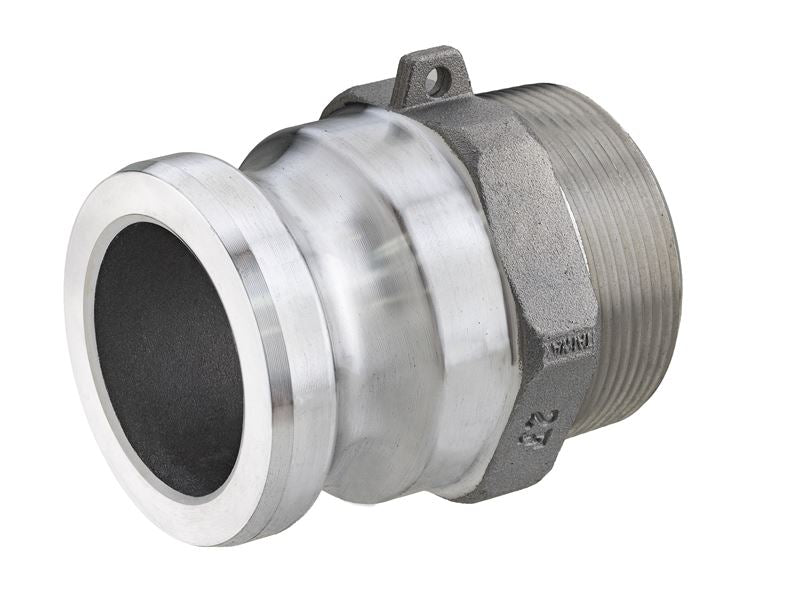

AL-F075 by Kuriyama | AL-F Series | Part F | Cam & Groove Adapter | 3/4" Adapter x 3/4" Male NPT | Aluminum

Save $5.45

$11.08

$11.08 - $11.08

$11.08

$5.63

$5.63 - $5.63

$5.63

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-F Series | Part F | Adapter x Male NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: AL-F075 Kuriyama
Series:	AL-F Series
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	3/4in Male Cam & Groove, 3/4in Male NPT
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Kuriyama offers two 8" coupling styles in aluminum.*
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.

Part Number	Adapter Size (in)	Male NPT (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
AL-F050	1/2"	1/2"	250 PSI	B211 Grade 6063	0.14 lbs
AL-F075	3/4"	3/4"	250 PSI	B85 Grade 383	0.16 lbs
AL-F100	1"	1"	250 PSI	B85 Grade 383	0.20 lbs
AL-F125	1-1/4"	1-1/4"	250 PSI	B108-92 356	0.34 lbs
AL-F150	1-1/2"	1-1/2"	250 PSI	B85 Grade 383	0.46 lbs
AL-F200	2"	2"	250 PSI	B85 Grade 383	0.68 lbs
AL-F2015	2"	1-1/2"	250 PSI	B85 Grade 383	0.64 lbs
AL-F2030	2"	3"	250 PSI	B85 Grade 383	1.06 lbs
AL-F250	2-1/2"	2-1/2"	150 PSI	B85 Grade 383	0.96 lbs
AL-F300	3"	3"	150 PSI	B85 Grade 383	1.30 lbs
AL-F3020	3"	2"	150 PSI	B85 Grade 383	0.86 lbs
AL-F3040	3"	4"	150 PSI	B85 Grade 383	1.78 lbs
AL-F400	4"	4"	150 PSI	B85 Grade 383	2.32 lbs
AL-F4030	4"	3"	150 PSI	B85 Grade 383	1.57 lbs
AL-F500	5"	5"	75 PSI	B108-92 356	2.94 lbs
AL-F600	6"	6"	75 PSI	B85 Grade 383	3.92 lbs
AL-F800	8"	8"	50 PSI	B108-92 356	7.94 lbs
AL-F1000	10"	10"	50 PSI	B26, Grade 713	10.58 lbs
HDAL-F801	8"	8"	50 PSI	B26, Grade 713	9.95 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-F800. If the measurement is more than 9" it is HDAL-F801.
