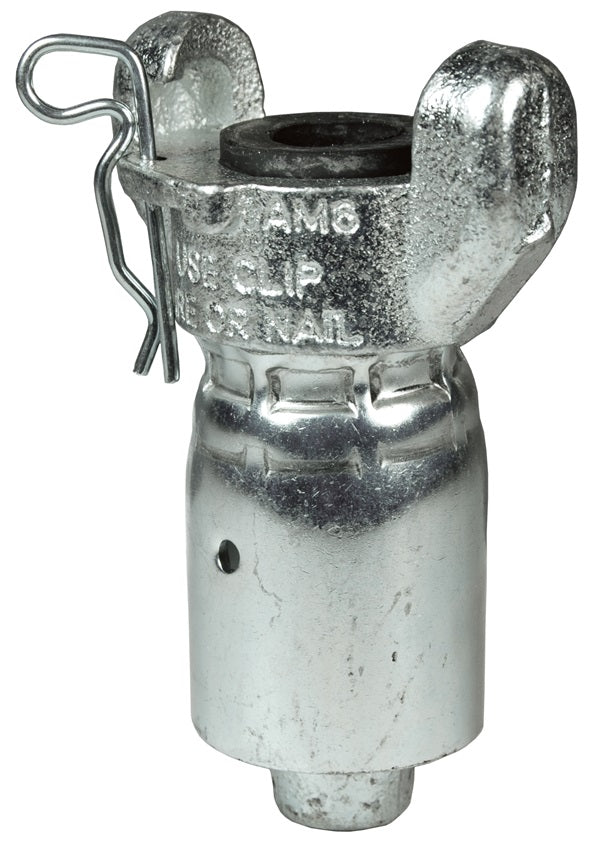

AM6WF Air King® by Dixon Valve | Pneumatic Fitting with Ferrule | 2-Lug Hose End | Chicago Style x 3/4" Hose ID | Hose OD: From 1-4/64" To 1-22/64" | Iron

Save $1.00

$11.31

$11.31 - $11.31

$11.31

$10.31

$10.31 - $10.31

$10.31

Dixon Valve
Air King® Pneumatic Fitting with Ferrule | 2-Lug Hose End | Chicago Style x Hose Barb

Air King is for air and water service only.

Quantity

Specifications for Variant SKU: AM6WF Dixon
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 3/4in Hose Barb
Material(s):	Plated Iron
Seal Material(s):	Rubber

Features:
Universal design provides quick, easy and effective coupling of air hose. Carbon steel ferrules. Supplied with safety clip. Supplied with rubber washer, part # AWR4
Specifications:
Working pressure: 150 PSI at ambient temperature 70°F (21°C)
Use:
Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling. Exclusive interlocking ferrule can be crimped or swaged to achieve maximum coupling sealing and retention with a low profile streamline appearance.
Safety Notes:
Never use any Air King coupling for steam service! Air King is for air and water service ONLY. The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose. Caution: Must use safety clips.

Iron Part Number	316 Stainless Steel Part Number	Hose ID Size	Hose O.D. Range
Iron Part Number	316 Stainless Steel Part Number	Hose ID Size	A	B
AM1WF	RAM1WF	1/2"	54/64"	1-2/64"
AM6WF	RAM6WF	3/4"	1-4/64"	1-22/64"
AM11WF-1	-	1"	1-18/64"	1-34/64"
AM11WF	-	1"	1-30/64"	1-46/64"
AM26WF	-	2"	2-28/64"	2-40/64"
