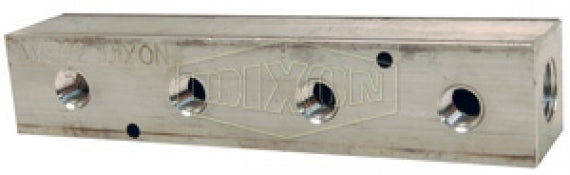

AMF43 by Dixon Valve | Pneumatic Bar Manifold | 1/2" Female NPT Inlet | 3/8" Female NPT Outlets (4) | Aluminum

AMF43 by Dixon Valve | Pneumatic Bar Manifold | 1/2" Female NPT Inlet | 3/8" Female NPT Outlets (4) | Aluminum

Save $6.20 Save $6.20
$55.83
$55.83 - $55.83
$55.83
$49.63
$49.63 - $49.63
$49.63

Bar Manifolds The bar manifold can be mounted on a wall or work bench, safely distributing four hose lines to a work area.

Specifications for Variant SKU: AMF43 Dixon
Features:
  • Safely distributes four hose lines to a work area.
  • Maximum operating pressure: 300 PSI at ambient temperature 70 °F (21 °C).
Material:
  • Aluminum
Aluminum
Part Number		 A B C D E F G H J
AMF32 1/4" 7-5/8" 7/8" 1-1/4" 1-7/8" 3-3/4" 1" 3/8" .20"
AMF42 1/4" 7-5/8" 1-1/8" 1-1/2" 1-7/8" 3-3/4" 1" 1/2" .20"
AMF43 3/8" 8" 1-1/8" 1-1/2" 2" 4" 1" 1/2" .20"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
