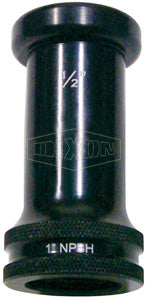

ANT100 Dixon Aluminum Tip for Ball Shut-Off Nozzles - 1" Female NPSH - 4" Length

Name: ANT100 Dixon Aluminum Tip for Ball Shut-Off Nozzles - 1" Female NPSH - 4" Length
Brand: Dixon
SKU: ANT100 Dixon
Price: 178.75 USD
Availability: InStock

Save $25.42

$204.17

$204.17 - $204.17

$204.17

$178.75

$178.75 - $178.75

$178.75

Dixon Fire Fittings
Fire Nozzle - Aluminum Tip for Ball Shut-Off Nozzle

Quantity

Specifications for Variant SKU: ANT100 Dixon
Shape (Orientation):	Straight
Material(s):	Aluminum

Features:
Lightweight Maximum operating pressure: 200 PSI (water only) at ambient temperature 70°F (21°C) 1/2" orifice standard

Part Number	Size	Orifice	Length	Weight (Lbs.)
ANT100	1" Female NPSH	1/2"	4"	0.6800
ANT150	1-1/2" Female NPSH	1/2"	4-3/4"	0.8700

ANT100F	1" Female NST(NH)	1/2"	4"	0.6800
ANT150F	1-1/2" Female NST(NH)	1/2"	4-3/4"	0.8500

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
