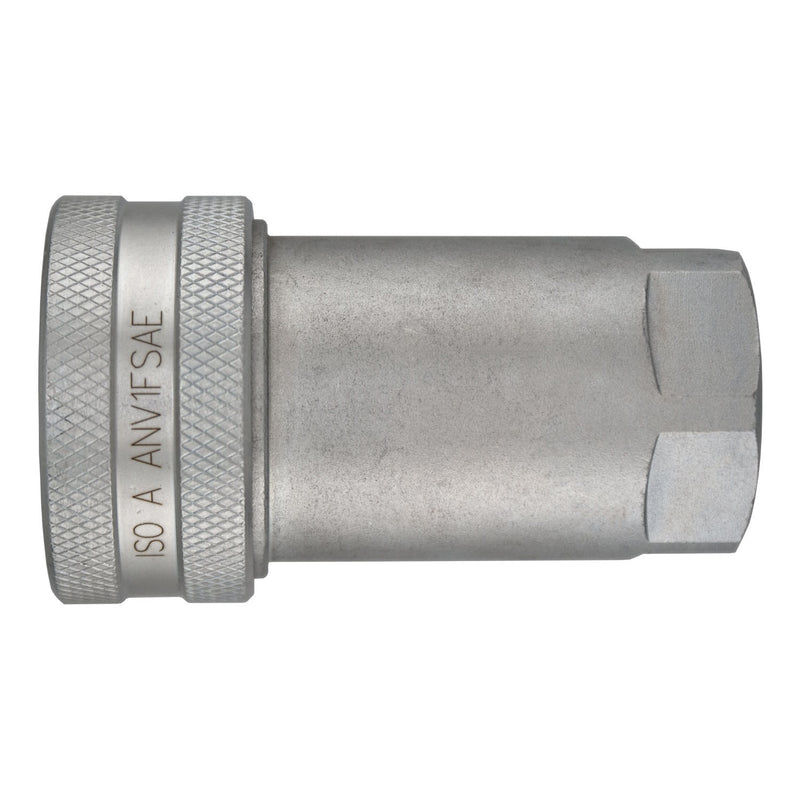

ANV1FSAE by Midland | Hydraulic Quick Disconnect | ISO-A Socket | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

ANV1FSAE by Midland | Hydraulic Quick Disconnect | ISO-A Socket | 1" Body Size x 1" Female SAE O-Ring Boss | Steel

Save $16.58 Save $16.58
$41.45
$41.45 - $41.45
$41.45
$24.87
$24.87 - $24.87
$24.87

Midland Industries
Hydraulic Quick Disconnects: ISO-A Female SAE ORB Socket - Steel
Specifications for Variant SKU: ANV1FSAE Midland
Ends Configuration: 1in ISO-A QD Interchange, 1in Female O-Ring Boss
Material(s): Steel
Features:
  • Poppet valves to prevent uncoupled leakage.
  • Critical parts are induction hardened for durability.
  • Dependable ball-locking mechanism holds the maling halves together.
  • Socket and plug are precision machined from solid barstock.
  • Standard nitrile seals temp range -40°F to +250°F.
ISO 7241-1 ISO-A Interchange ( Connected )
Steel Coupler/ Plug
Body Size Maximum Working Burst
PSI Bar PSI Bar
1/4" 5,000 PSI 345 Bar 18,270 PSI 1,200 Bar
3/8" 4,000 PSI 275 Bar 18,270 PSI 1,200 Bar
1/2" 4,000 PSI 275 Bar 16,500 PSI 1,100 Bar
3/4" 4,000 PSI 275 Bar 14,800 PSI 1,000 Bar
1" 4,000 PSI 275 Bar 12,400 PSI 850 Bar
1-1/4" 3,000 PSI 200 Bar 12,600 PSI 850 Bar
1-1/2" 3,000 PSI 200 Bar 12,600 PSI 850 Bar
2" 1,450 PSI 100 Bar 5,800 PSI 400 Bar
ISO-A SAE Female ORB Coupler
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
ANV14FSAE 1/4" 1/4" 7/16-20
ANV38FSAE 3/8" 3/8" 9/16-18
ANV12FSAE 1/2" 1/2" 3/4-16
ANV34FSAE 3/4" 3/4" 1-1/16-12
ANV1FSAE 1" 1" 1-5/16-12
ISO-A SAE Female ORB Plug
Part Number Body
Size		 Female
SAE O-Ring Boss		 Thread
ANV14MSAE 1/4" 1/4" 7/16-20
ANV38MSAE 3/8" 3/8" 9/16-18
ANV12MSAE 1/2" 1/2" 3/4-16
ANV34MSAE 3/4" 3/4" 1-1/16-12
ANV1MSAE 1" 1" 1-5/16-12
