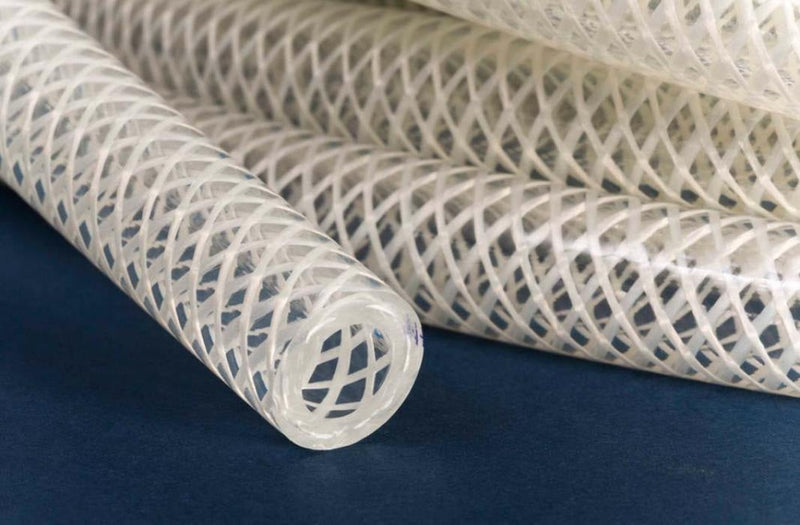

APC1S2480 Tygon® by Saint Gobain | Formulation 2375 IB | Reinforced High Pressure Chemical Transfer Metric Tubing | 12mm ID x 18mm OD x 3mm Wall | 15m Package Length

APC1S2480 Tygon® by Saint Gobain | Formulation 2375 IB | Reinforced High Pressure Chemical Transfer Metric Tubing | 12mm ID x 18mm OD x 3mm Wall | 15m Package Length

Minimum Order Quantity: 80 Packages

Save $324.63 Save $324.63
$324.63
$324.63 - $324.63
$324.63
$0.00
$0.00 - $0.00
$0.00

Saint Gobain
Tygon® 2375 IB | Reinforced High Pressure Chemical Transfer Metric Tubing

Tygon® 2375 IB tubing, which is unaffected by most chemical sanitizers and cleaners, is specially engineered to deliver outstanding performance in an environment where harsh chemicals are used.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: APC1S2480 Saint Gobain
Brand: Tygon
Series: 2375-IB
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 12mm
Outer Diameter: 18mm
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: REACH Compliant, RoHS Compliant
Chemical Transfer Tubing

Tygon® 2375 IB | Reinforced High Pressure Chemical Transfer Metric Tubing

Tygon® 2375 IB tubing offers excellent chemical resistance and flexibility for transferring harsh chemicals, sanitizers, cleaners, and solvents. Its polyester braid reinforcement provides full vacuum capability, making it ideal for suction and delivery applications. Made without plasticizers, the clear, flexible tubing helps maintain fluid integrity in sensitive chemical transfer systems.

1

What is this product used for?
  • Detergent transfer for laundry
  • Dishwashing cleaning chemical transfer lines
  • Warewashing cleaning chemical transfer lines
  • Car washing equipment chemical transfer lines
  • Harsh chemical transfer
  • Solvent transfers
2

What are the key specifications?
Tube

Plasticizer-Free Polymer

Cover

Plasticizer-Free Polymer

Reinforcement

Polyester Braid

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

130°F (54°C)

Low Temp. Flexibility °F (°C)

-103°F (-75°C)

Specifications

REACH and RoHS Compliant

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Outstanding chemical resistance.
  • Non-DEHP.
  • Plasticizer-free - Extends tubing life and reduces maintenance costs over plasticized products.
  • Braid reinforcement for elevated working pressures.
  • Safer disposal - Releases no harmful and corrosive hydrogen chloride gas.
  • Smooth inner surface - Provides better flow and inhibits particulate buildup.
  • Clear tubing for easier and better observation.
4

Which sizes or configurations are available?
Part Number Inside
Diameter		 Outside
Diameter		 Wall
Thickness		 Min.
Bend Radius		 Max. Working Pressure
at 73 deg. F		 Vaccum Pressure Rating
at 73 deg. F		 Length
mm in mm in mm in mm in bar PSI mmHg inHg m ft
APC1S1542 6mm 0.236" 12mm 0.472" 3mm 0.118" 25.4mm 1" 15.5 bar 225 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2138 10mm 0.394" 16mm 0.630" 3mm 0.118" 50.8mm 2" 11.7 bar 170 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2480 12mm 0.472" 18mm 0.709" 3mm 0.118" 95.25mm 3.75" 13.1 bar 190 PSI 760 mmHg 29.9 inHG 15M 49.2ft
APC1S2481 16mm 0.630" 22mm 0.866" 3mm 0.118" 101.6mm 4" 11.3 bar 165 PSI 760 mmHg 29.9 inHG 15M 49.2ft
i
Working pressures are calculated at a 1:4 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® 2375 IB Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
