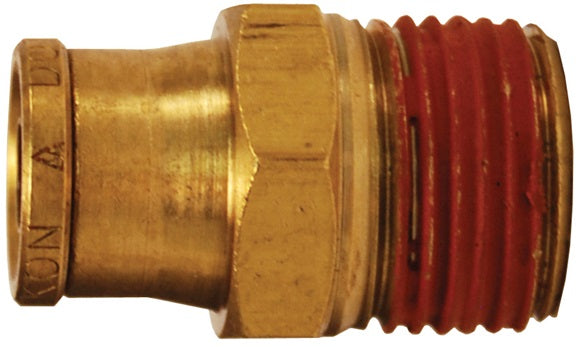

AQ68DOT4X2 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Connector | 1/8" Male NPTF x 1/4" Tube OD | Brass CA360

AQ68DOT4X2 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Connector | 1/8" Male NPTF x 1/4" Tube OD | Brass CA360

Save $0.42 Save $0.42
$3.79
$3.79 - $3.79
$3.79
$3.37
$3.37 - $3.37
$3.37

Dixon Valve & Coupling
D.O.T. Push-In Fitting | Male Connectors | Male NPTF x Tube End

Recommended for use with J844 Air Brake Tubing.
Specifications for Variant SKU: AQ68DOT4x2 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/8in Male NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass CA360
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. Male NPTF
AQ68DOT4X2 1/4" 1/8"
AQ68DOT4X4 1/4" 1/4"
AQ68DOT4X6 1/4" 3/8"
AQ68DOT6X4 3/8" 1/4"
AQ68DOT6X6 3/8" 3/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
