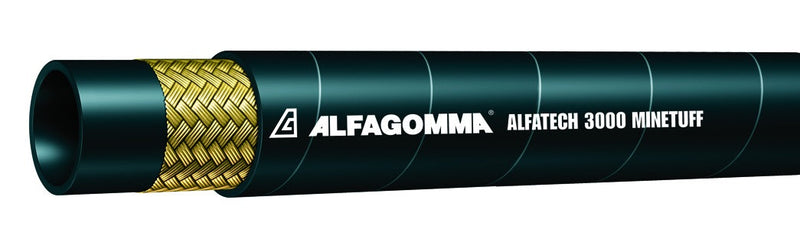

AT3KMT-06 Alfagomma Alfatech by Kuriyama | AT3KMT Series | SAE 100R17 | Minetuff Hydraulic Hose | 1-Wire Braid | 3/8" ID | 0.61" OD | 3120 PSI

AT3KMT-06 Alfagomma Alfatech by Kuriyama | AT3KMT Series | SAE 100R17 | Minetuff Hydraulic Hose | 1-Wire Braid | 3/8" ID | 0.61" OD | 3120 PSI

Save $1.09 Save $1.09
$3.81
$3.81 - $3.81
$3.81
$2.72
$2.72 - $2.72
$2.72

Kuriyama of America Inc.
Alfagomma | AT3KMT Series | SAE 100R17 | Minetuff Hydraulic Hose | 1-Wire Braid

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: AT3KMT-06 Kuriyama
Brand: Alfagomma, Alfatech, Minetuff
Series: AT3KMT Series
Hose Color(s): Black
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.61in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: SAE100 R17, EN 857 1SC, MSHA IC-152/16
Compatible with the following Series: B Series  |   AF1 Series
Application: Medium pressure service with petroleum based hydraulic fluids such as hot oil, grease, lubricants, and crude oils, air and water. Developed to withstand punishing conditions and to meet increasing pressure pulsing, flexing and temperature demands not currently covered by International specifications. SAE Rating: SAE 100R17
Other Ratings: Meets or exceeds EN 857 1SC (Sizes 04 and 06)
MSHA IC-152/16 Approved Flame Resistance		 Tube: Synthetic rubber, black... oil-resistant
Reinforcement: One layer of high tensile steel wire braid reinforcement Cover: Synthetic rubber, black... oil, fuel, weather, ozone and abrasion-resistant
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation
Maximum operating temperature: +250°F (+121°C)		 Air Maximum Temperature: +175°F (+80°C)
Note: Operating temperatures in excess of +212°F (+100°C) may materially reduce the life of the hose.
Branding: ALFAGOMMA AT3K MINETUFF ID...WP MPa... MPa... SAE 100R17 - DN... MSHA IC- 152/16 - Q/YR
Other Features:
  • Excellent abrasion resistance (10 times higher than EN-ISO 6945 requirements).
  • Reduces the need for any protective sleeve in applications requiring high abrasion resistance.
  • UV and ozone resistance (hose ageing reduction).
  • Features extraordinary flexibility, excellent bend radii properties, superior performance under flex-impulse conditions, and exceptional long life. Tested over 1,000,000 impulse cycles at 120% of rated working pressure.
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
AT3KMT-04 1/4" 6.4mm 0.47" 2.0mm 3250 PSI 1.9" 48.3mm 0.12 lbs/ft
AT3KMT-06 3/8" 9.5mm 0.61" 15.4mm 3120 PSI 2.5" 63.5mm 0.18 lbs/ft
AT3KMT-08 1/2" 12.7mm 0.76" 19.2mm 3000 PSI 3.5" 88.9mm 0.25 lbs/ft

* Minimum burst pressure 4-to-1 safety factor.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
