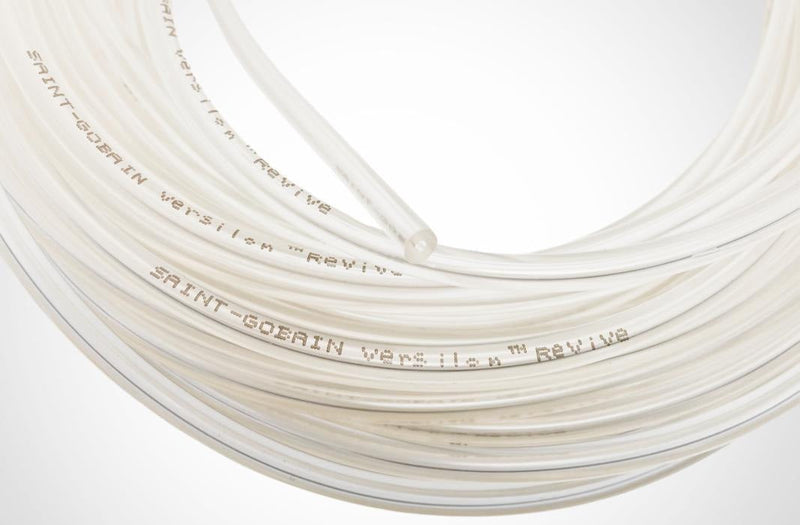

ATW00038 Versilon™ by Saint Gobain | ReVive | 100% Pre-Consumer Recycled Tubing | 1/2" ID x 3/4" OD x 1/8" Wall | 50' Package Length

ATW00038 Versilon™ by Saint Gobain | ReVive | 100% Pre-Consumer Recycled Tubing | 1/2" ID x 3/4" OD x 1/8" Wall | 50' Package Length

Save $68.12 Save $68.12
$238.41
$238.41 - $238.41
$238.41
$170.29
$170.29 - $170.29
$170.29

Saint Gobain
Versilon® ReVive | 100% Pre-Consumer Recycled Tubing

Versilon® ReVive is a translucent thermoplastic elastomer (TPE) tubing made with 100% pre-consumer recycled content for fluid management of aggressive chemicals with excellent seal and weld properties.

Package Quantity: 50 ft

Specifications for Variant SKU: ATW00038 Saint Gobain
Brand: Versilon
Series: ReVive
Internal Diameter: 0.5in
Outer Diameter: 0.75in
Tubing Construction: Thermoplastic Elastomer
Thermoplastic Elastomer Flexible Tubing

Versilon® ReVive | 100% Pre-Consumer Recycled Tubing

Versilon® ReVive translucent thermoplastic elastomer (TPE) tubing is extruded using 100% pre-consumer recycled content for fluid management with excellent sealing and welding properties. It has excellent chemical resistance to a wide range of aggressive chemicals, including acids or bases. Production is carefully controlled by collecting specific materials from internal processes through extrusion of the final product.

1

What is this product used for?
  • Chemical Transfer
  • Soap and Detergent Transfer
  • Analytical Instruments
2

What are the key specifications?
Tube

Produced with 100% pre-consumer recycled content

Cover

N/A

Reinforcement

None

Colors

Translucent

Max Working Temperature °F (°C)

275°F (135°C)

Low Temp Flexibility °F (°C)

-76°F (-60°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Excellent chemical resistance.
  • Produced with 100% pre-consumer recycled content.
  • Translucent, resulting in a visible fluid path.
  • Flexible for ease of assembly.
  • Temperature range from -76°F (-60°C) to 275°F (135°C).
  • Sealable and weldable.
  • Packaged in a cardboard box without plastic wrap.
  • Packaging box contains up to 55% of recycled content and is 100% recyclable.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Max. Working
Pressure
at 73°F
(PSI)*		 Vacuum
Rating
at 73°F
(in. Hg)		 Length
ATW00003 1/16" 3/16" 1/16" 0.25" 26 PSI 29.9 in. Hg 50ft
ATW00007 1/8" 1/4" 1/16" 0.25" 17 PSI 29.9 in. Hg 50ft
ATW00012 3/16" 5/16" 1/16" 0.50" 13 PSI 29.9 in. Hg 50ft
ATW00017 1/4" 3/8" 1/16" 1" 9 PSI 25 in. Hg 50ft
ATW00022 5/16" 7/16" 1/16" 1.5" 9 PSI 15 in. Hg 50ft
ATW00027 3/8" 1/2" 1/16" 1.5" 8 PSI 15 in. Hg 50ft
ATW00038 1/2" 3/4" 1/8" 1.75" 10 PSI 29.9 in. Hg 50ft
ATW00046 5/8" 7/8" 1/8" 2.5" 8 PSI 20 in. Hg 50ft
ATW00053 3/4" 1" 1/8" 4" 6 PSI 10 in. Hg 50ft
i
Working Pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Versilon® ReVive Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
