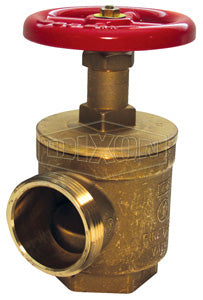

AV251NYC Dixon Forged Brass Global Angle Hose Valve - 2-1/2" Female NPT x Male 2-1/2" NYC

AV251NYC Dixon Forged Brass Global Angle Hose Valve - 2-1/2" Female NPT x Male 2-1/2" NYC

Save $146.67 Save $146.67
$366.67
$366.67 - $366.67
$366.67
$220.00
$220.00 - $220.00
$220.00

Dixon Fire Fittings
Angle Hose Valve - Forged Brass Global Angle Hose Valve

To be used with a fire hose rack assembly, or as a fire department outlet connection
Specifications for Variant SKU: AV251NYC Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NYCorp
Material(s): Brass, Steel
Features:
  • Underwriters Listed and Factory Mutual approved.
  • Red Steel Handwheel
  • maximum operating pressure: 300 PSI at 70°F (21°C)
Part Number Description Weight
(Lbs.)
AV151 1-1/2" Female NPT x 1-1/2" Male NST (NH) 3.8100
AV251 2-1/2" Female NPT x 2-1/2" Male NST (NH) 8.9200
AV251NYC 2-1/2" Female NPT x 2-1/2" Male NYC 9.0000
AV251NYFD 2-1/2" Female NPT x 2-1/2" Male NYFD 9.0000
AVF151 1-1/2" Female NPT x 1-1/2" Female NPT 3.8200
AVF251 2-1/2" Female NPT x 2-1/2" Female NPT 9.1600
Replacement Parts
AV151-WR Red Handwheel for AV151 0.2150
AV251-WR Red Handwheel for AV251 1.0000
AV251-N Replacement Handwheel Nut for 1-1/2" and 2-1/2" Valves 0.0200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
