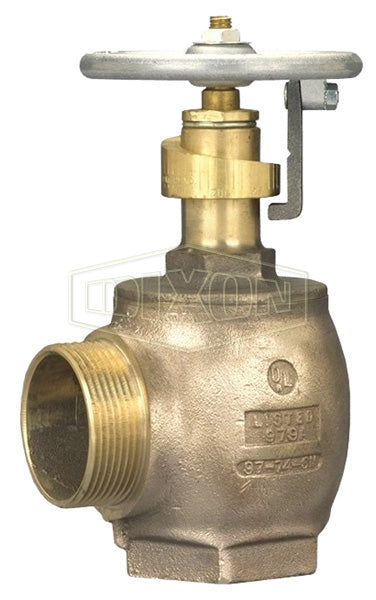

AVAPR150F Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet

Name: AVAPR150F Dixon Cast Brass Domestic Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet
Brand: Dixon
SKU: AVAPR150F Dixon
Price: 463.13 USD
Availability: InStock

Save $49.24

$512.37

$512.37 - $512.37

$512.37

$463.13

$463.13 - $463.13

$463.13

Dixon Fire Fittings
Domestic Adjustable Pressure Restricting Angle Valves

Used when flowing water pressure needs to be controlled.

Quantity

Specifications for Variant SKU: AVAPR150F Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female NPT, 1-1/2in Male NST
Material(s):	Brass

Features:
Preset orifices restrict the volume of water thereby lowering the pressure of the flowing water; NFPA requires restricting valves where inlet pressure exceeds 100 PSI. Restricting valve has no effect on the static pressure of a system. Can be manually by-passed if required by opening the valve fully, this is accomplished by breaking the breakable link, which allows the valve stem to rise to the full open position. Breakable link also serves as an indication of valve condition and status; if valve is opened without breaking the link it will resume its previous position and no resetting is necessary. Restricts inlet pressure from 70 PSI up to a maximum of 175 PSI. Restricts down to outlet pressures of 65, 80 or 100 PSI, outlet pressures may be set below 65 PSI when authorized by the local authority having jurisdiction. Restricts only under flow conditions. Setting charts are packed with valve. UL listed. New York City Board of Standards and Appeals, approval # MEA 54-07-E. Maximum operating pressure: up to 175 PSI. Aluminum handwheel.

Part Number	Inlet	Outlet	Weight (Lbs.)
AVAPR150F	1-1/2" Female NPT	1-1/2" Male NST (NH)	6.3000
AVAPR250F	2-1/2" Female NPT	2-1/2" Male NST (NH)	13.5800

AVAPRF150	1-1/2" Female NPT	1-1/2" Female NPT	5.0000
AVAPRF250	2-1/2" Female NPT	2-1/2" Female NPT	12.0000
