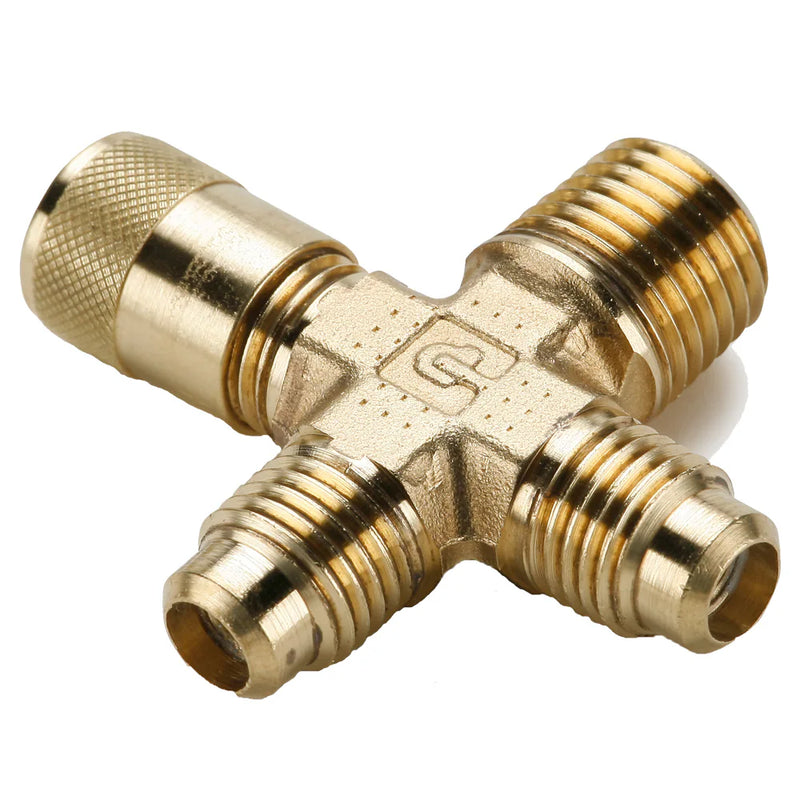

AVC1-4 by Parker | Access Valve | 1/4" Male Pipe or 5/16" O.D. Solder x 1/4" Access on all Flare Ends w/ One Core and Cap | Cross | Brass | Pack of 2

AVC1-4 by Parker | Access Valve | 1/4" Male Pipe or 5/16" O.D. Solder x 1/4" Access on all Flare Ends w/ One Core and Cap | Cross | Brass | Pack of 2

Save $81.01 Save $81.01
$202.53
$202.53 - $202.53
$202.53
$121.52
$121.52 - $121.52
$121.52

by Parker Hannifin
Access Valves:Forged Male Cross AVC1

Package Quantity: 2 Units

Specifications for Variant SKU: AVC1-4 Parker | 2 |
Shape (Orientation): Cross
Material(s): Brass
Product Features:
  • All brass construction
  • 1/4” SAE male flare access ports
  • Finger tight quick seal caps
  • Access valves with pipe connections have internal ODS solder cups
Markets:
  • Refrigeration
  • Air Conditioning
Applications:
  • Pressure Testing
  • Purging
  • Charging Refrigeration Lines
Specification:
Temperature Range: -20° to +220° F (-28.8° to +104.4° C)
Pressure Range: Up to 500 PSI (34.3 bar)
Compatible Tubing:
  • Copper
Part Number Tube Size
AVC1-4 1/4"
