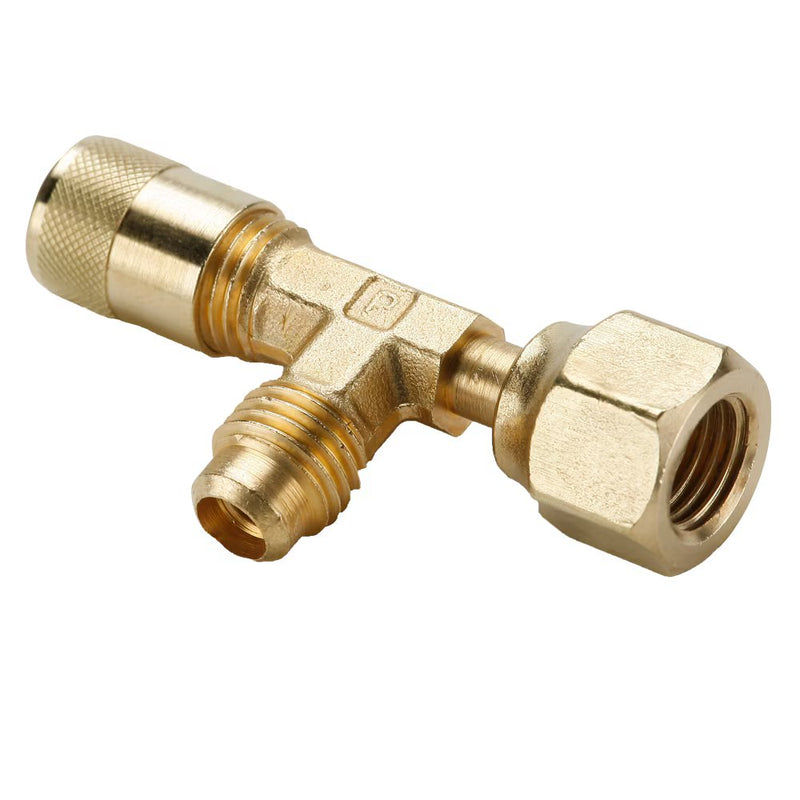

AVTS4-4 by Parker | Access Valve | 1/4" Female Flare Swivel x 1/4" Access on Both Run and Branch | Tee | Brass | Pack of 3

AVTS4-4 by Parker | Access Valve | 1/4" Female Flare Swivel x 1/4" Access on Both Run and Branch | Tee | Brass | Pack of 3

Save $17.00 Save $17.00
$122.72
$122.72 - $122.72
$122.72
$105.72
$105.72 - $105.72
$105.72

by Parker Hannifin
Access Valves:Forged Female Run Swivel Tee AVTS4

Package Quantity: 3 Units

Specifications for Variant SKU: AVTS4-4 Parker | 3 |
Series: AVTS4 Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Swivel
Product Features:
  • All brass construction
  • 1/4” SAE male flare access ports
  • Finger tight quick seal caps
  • Access valves with pipe connections have internal ODS solder cups
Markets:
  • Refrigeration
  • Air Conditioning
Applications:
  • Pressure Testing
  • Purging
  • Charging Refrigeration Lines
Specification:
Temperature Range: -20° to +220° F (-28.8° to +104.4° C)
Pressure Range: Up to 500 PSI (34.3 bar)
Compatible Tubing:
  • Copper
Part Number Tube Size
AVTS4-4 1/4"
AVTS4D-4 1/4"
