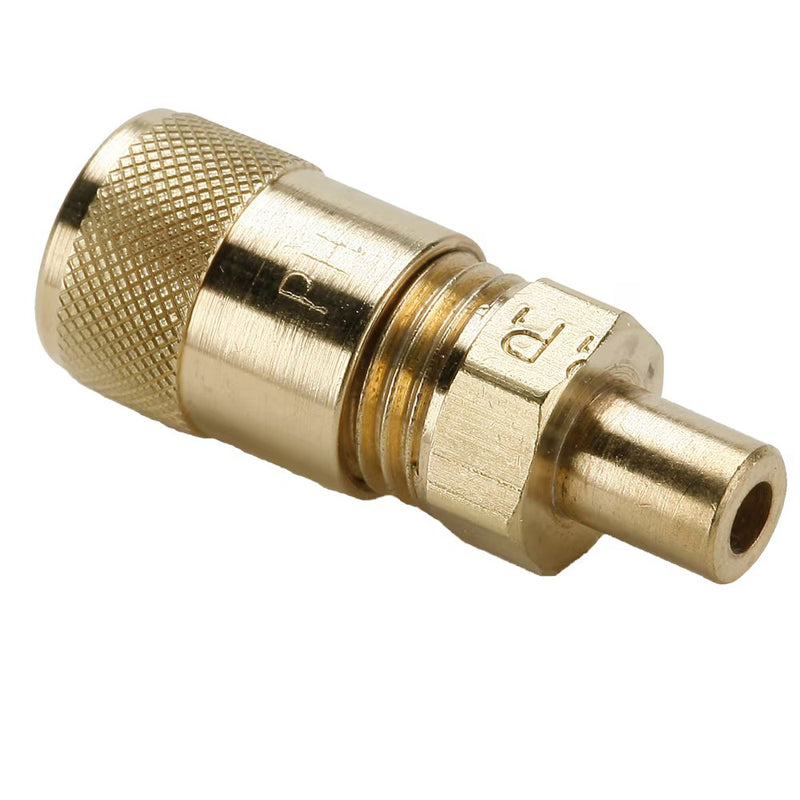

AVUS-46 by Parker | Access Valve | 3/8" O.D. Tube or 1/2" Solder Fitting/Swaged Tube | Straight | Brass | Pack of 5

Save $11.34

$124.76

$124.76 - $124.76

$124.76

$113.42

$113.42 - $113.42

$113.42

by Parker Hannifin
Access Valves:Straight Solder Connector AVUS

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: AVUS-46 Parker \| 5 \|
Series:	AVUS Series
Shape (Orientation):	Straight
Material(s):	Brass

Specification:
Product Features:	All brass construction 1/4” SAE male flare access ports Finger tight quick seal caps Access valves with pipe connections have internal ODS solder cups
Markets:	Refrigeration Air Conditioning
Applications:	Pressure Testing Purging Charging Refrigeration Lines
Temperature Range:	-20° to +220° F (-28.8° to +104.4° C)
Pressure Range:	Up to 500 PSI (34.3 bar)
Compatible Tubing:	Copper

Part Number	Tube Size
AVUS-42	1/8"
AVUS-43	3/16"
AVUS-44	1/4"
AVUS-46	3/8"

Product comes with valve core loose and should be torqued after brazing to ARI 720 standard.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
