AZT00027 Tygon® by Saint Gobain | A-60-C | Cleaning Chemical Dispensing Tubing | 3/8" ID x 1/2" OD x 1/16" Wall | | 50' Package Length

AZT00027 Tygon® by Saint Gobain | A-60-C | Cleaning Chemical Dispensing Tubing | 3/8" ID x 1/2" OD x 1/16" Wall | | 50' Package Length

Minimum Order Quantity: 30 Packages

Save $119.86 Save $119.86
$119.86
$119.86 - $119.86
$119.86
$0.00
$0.00 - $0.00
$0.00

Saint Gobain

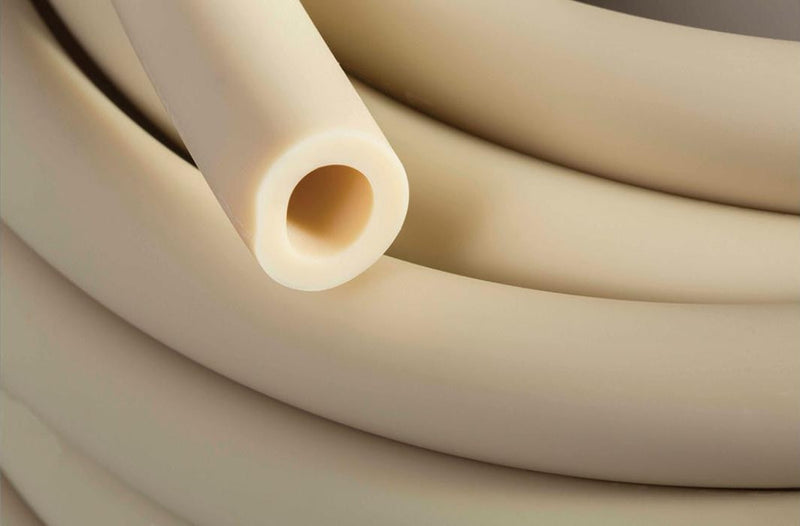

Tygon® A-60-C | Cleaning Chemical Dispensing Tubing

Tygon® A-60-C tubing from Saint-Gobain is formulated to withstand extreme temperatures from -75° F to 275° F (-59° C to 135° C) and will not crack or deteriorate when used in demanding cleaning chemical dispensing applications.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: AZT00027 Saint Gobain
Brand: Tygon
Series: A-60-C
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.5in
Tubing Construction: Special Proprietary
Thermoplastic Elastomer Flexible Tubing

Tygon® A-60-C | Cleaning Chemical Dispensing Tubing

Formulated to withstand extreme temperatures from -75°F to 275°F (-59°C to 135°C), Tygon® A-60-C tubing will not crack or deteriorate when used in demanding cleaning chemical dispensing applications. Extremely flexible, it resists kinks and retains its shape while installing quickly and easily. Its excellent flexural fatigue resistance makes it the absolute best choice for use in peristaltic pumps often found in dispensing equipment. Repeatedly autoclavable, it can be steam cleaned in place, eliminating the need for frequent tubing replacement. When harsh sanitizing solutions are used, it exhibits exceptional chemical resistance and is entirely unaffected by a wide variety of cleaning solutions.

1

What is this product used for?
  • Tygon® A-60-C tubing is ideal for use in clean-in-place and steam-in-place cleaning and sterilization systems. It is compatible with virtually all commercial cleaners and sanitizers and can be repeatedly autoclaved for up to five cycle times without affecting its overall service life.
2

What are the key specifications?
Tube

Thermoplastic Elastomer

Cover

Thermoplastic Elastomer

Reinforcement

None

Colors

Cream

Maximum Recommended Operating Temp. °F (°C)

275°F (135°C)

Brittleness by Impact Temp., °F (°C)

-75°F (-60°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Long flex life in peristaltic pumps.
  • Temperature resistant from -75°F to 275°F (-59°C to 135°C).
  • Compatible with virtually all common sanitizers and cleaners.
  • Ozone and UV light resistant.
  • Repeatedly autoclavable.
  • Chemically compatible with a wide range of cleaners.
4

Which sizes or configurations are available?
Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Min.
Bend Radius
(in.)		 Max. Working
Pressure* 		Vaccum Pressure
Rating 		Length
at 73°F (PSI) at 180°F (PSI) at 73°F (PSI) at 180°F (PSI)
AZT00003 1/16" 3/16" 1/16" 1/4" 34 PSI 21 PSI 29.9 inHg 29.9 inHg 50ft
AZT00007 1/8" 1/4" 1/16" 1/2" 19 PSI 12 PSI 29.9 inHg 29.9 inHg 50ft
AZT00012 3/16" 5/16" 1/16" 3/4" 13 PSI 8 PSI 29.9 inHg 23.0 inHg 50ft
AZT00017 1/4" 3/8" 1/16" 1-1/4" 10 PSI 6 PSI 26.0 inHg 13.0 inHg 50ft
AZT00019 1/4" 1/2" 1/8" 3/4" 19 PSI 12 PSI 29.9 inHg 29.9 inHg 50ft
AZT00022 5/16" 7/16" 1/16" 1-1/2" 8 PSI 5 PSI 17.0 inHg 8.0 inHg 50ft
AZT00027 3/8" 1/2" 1/16" 2-1/4" 7 PSI 4 PSI 11.0 inHg 5.0 inHg 50ft
AZT00029 3/8" 5/8" 1/8" 1-1/4" 13 PSI 8 PSI 29.9 inHg 23.0 inHg 50ft
AZT00038 1/2" 3/4" 1/8" 2" 10 PSI 6 PSI 26.0 inHg 13.0 inHg 50ft
AZT00046 5/8" 7/8" 1/8" 3-1/4" 8 PSI 5 PSI 17.0 inHg 8.0 inHg 50ft
AZT00053 3/4" 1" 1/8" 4" 7 PSI 4 PSI 11.0 inHg 5.0 inHg 50ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® A-60-C Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
