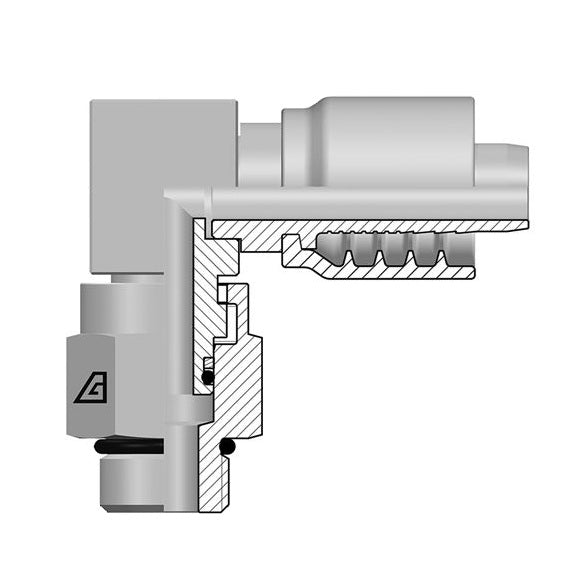

B-0404-MBS9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -04 Hose ID x -04 SAE Male O-Ring Boss Swivel | Steel

B-0404-MBS9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -04 Hose ID x -04 SAE Male O-Ring Boss Swivel | Steel

Save $7.27 Save $7.27
$25.44
$25.44 - $25.44
$25.44
$18.17
$18.17 - $18.17
$18.17

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x SAE Male O-Ring Boss Swivel
Specifications for Variant SKU: B-0404-MBS9 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb, 1/4in Male O-Ring Boss
Material(s): Steel
Special Properties: Swivel, Compact Elbow
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D Drop CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-MBS9 04 1/4" 6.4mm 04 7/16-20 17mm 35mm 17mm 0.22 lbs
B-0405-MBS9 04 1/4" 6.4mm 05 1/2-20 17mm 35mm 17mm 0.25 lbs
B-0406-MBS9 04 1/4" 6.4mm 06 9/16-18 19mm 42mm 22mm 0.26 lbs
B-0606-MBS9 06 3/8" 9.5mm 06 9/16-18 20mm 44mm 22mm 0.27 lbs
B-0608-MBS9 06 3/8" 9.5mm 08 3/4-16 22mm 45mm 25mm 0.30 lbs
B-0808-MBS9 08 1/2" 12.7mm 08 3/4-16 23mm 48mm 25mm 0.44 lbs
B-0810-MBS9 08 1/2" 12.7mm 10 7/8-14 23mm 50mm 25mm 0.48 lbs
B-1212-MBS9 12 3/4" 19.0mm 12 1-1/16-12 27mm 60mm 32mm 0.60 lbs
B-1616-MBS9 16 1" 25.4mm 16 1-5/16-12 30mm 64mm 38mm 1.10 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
